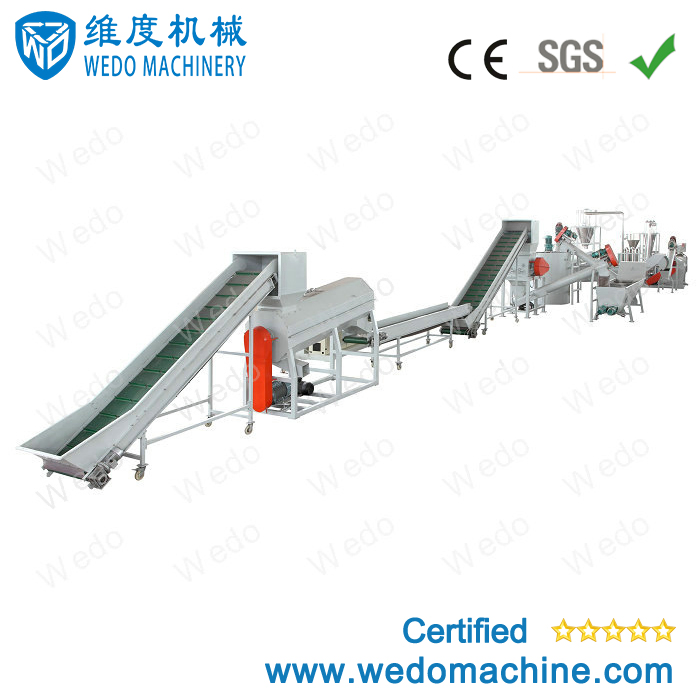

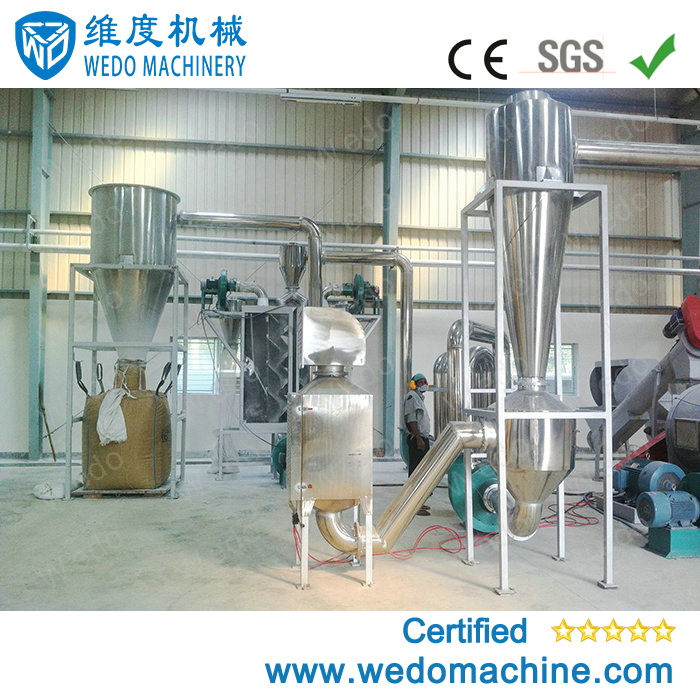

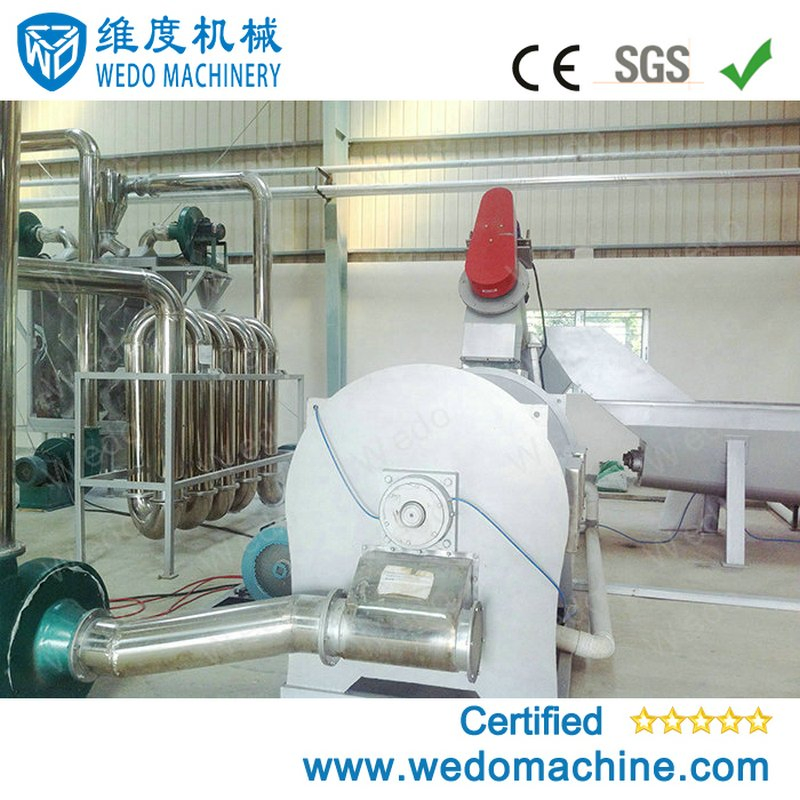

Pet Plastic Recycling Machine

Customization:	Available
After-sales Service:	Engineer Commissioning
Warranty:	15 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.:Pet Plastic Recycling Machine

Material:Plastic Bottle (PET)

Screw:Single-Screw

Automation:Automatic

Certification:CE, SGS

Motor:Siemens

Inverter:ABB

Core Part:Plastic Crusher

Drying:Centrifuge Dewatering

Machine Material:Stainless Steel 304

Blade Material:SKD11

Temp Control:Omron

Product Description

This plastic recycling machine is designed for crushing, washing, and recycling waste PET bottles. The system consists of a label remover, sorter, crusher, cold washer, hot washer, dewatering unit, and packing system. It effectively extracts clean PET flakes by removing PE/PP caps, oil, and PVC labels, helping to prevent plastic pollution.

Metal Chain Conveyor → De-Baler → Belt Conveyor → Trommel → Label Remover → Sorting Table → Metal Detector → Crusher → Screw Loader → Floating Washer → Friction Washer → Hot Washer → Dewatering Machine → Zig-Zag Separator → Silo

Equipment Photos

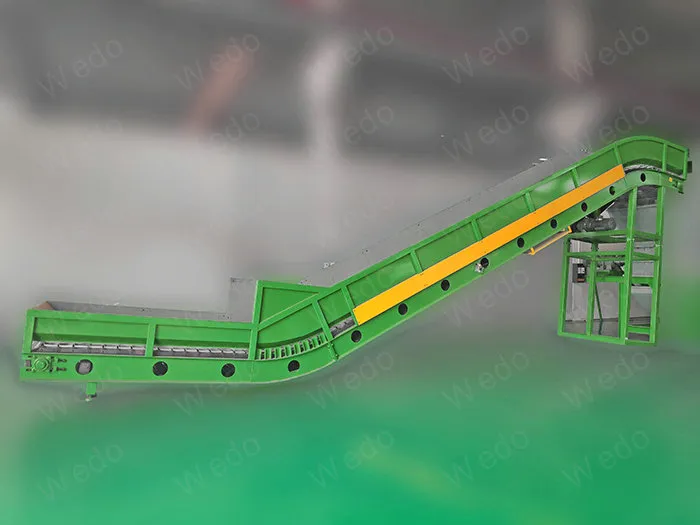

Metal Chain Conveyor

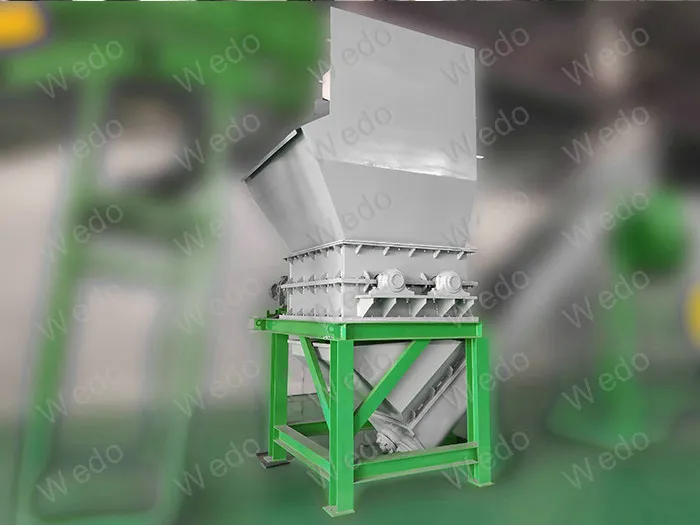

Debaler Machine

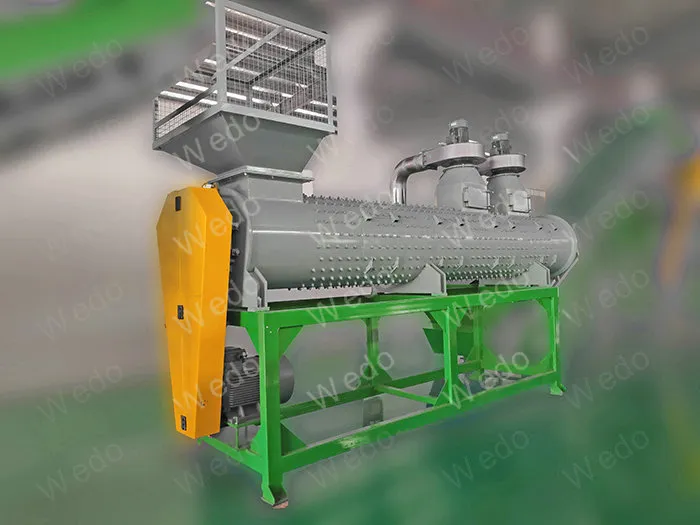

Label Remover

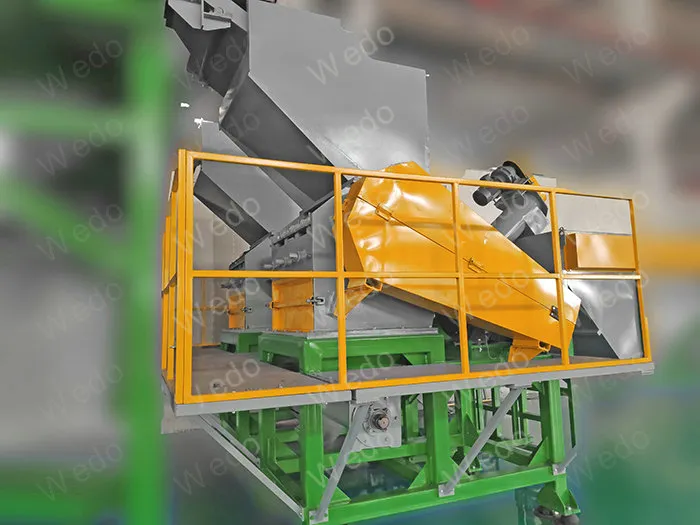

Crusher/Granulator

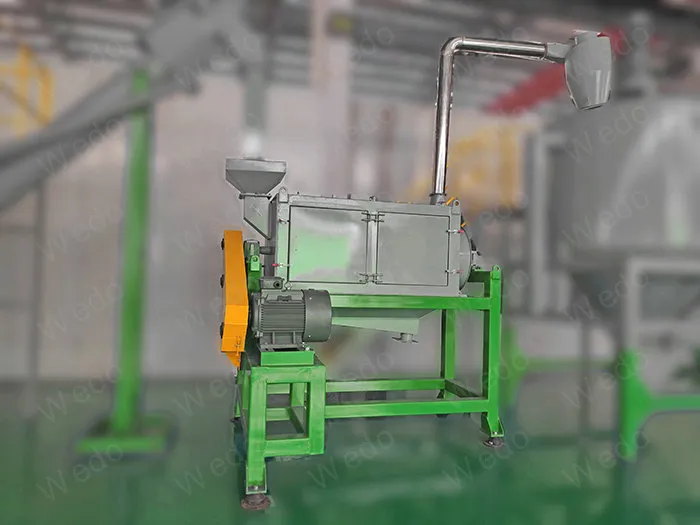

Dewatering Machine

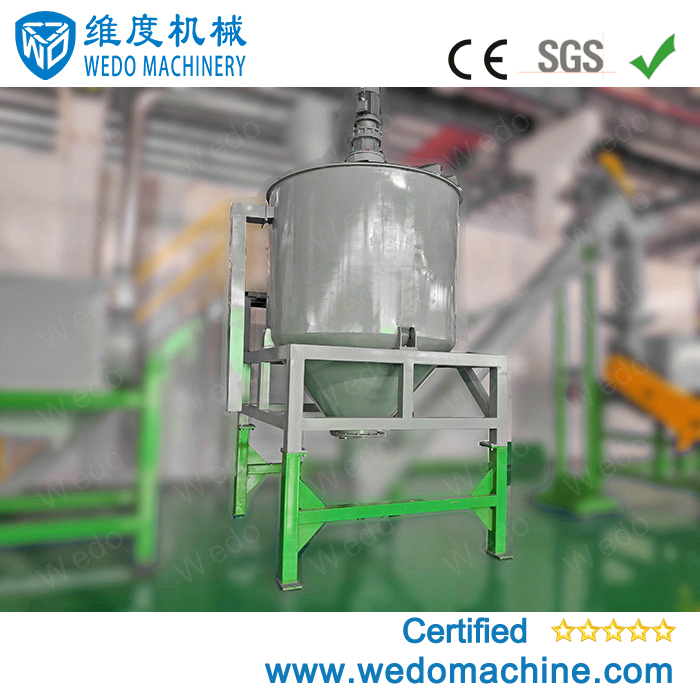

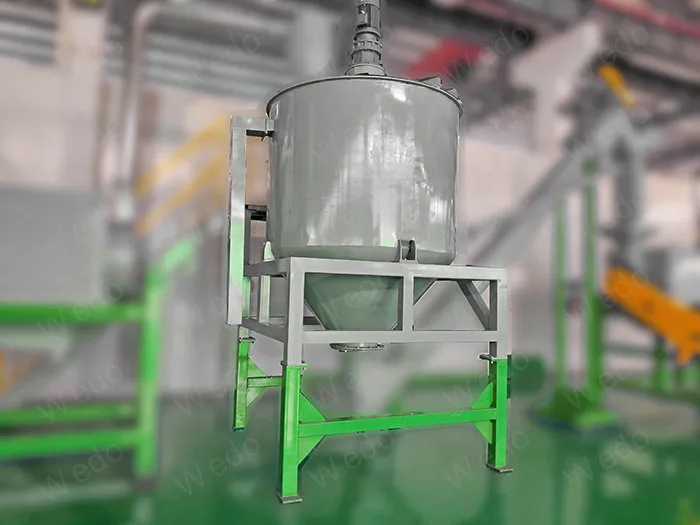

Hot Washing Tank

Main Component Functions

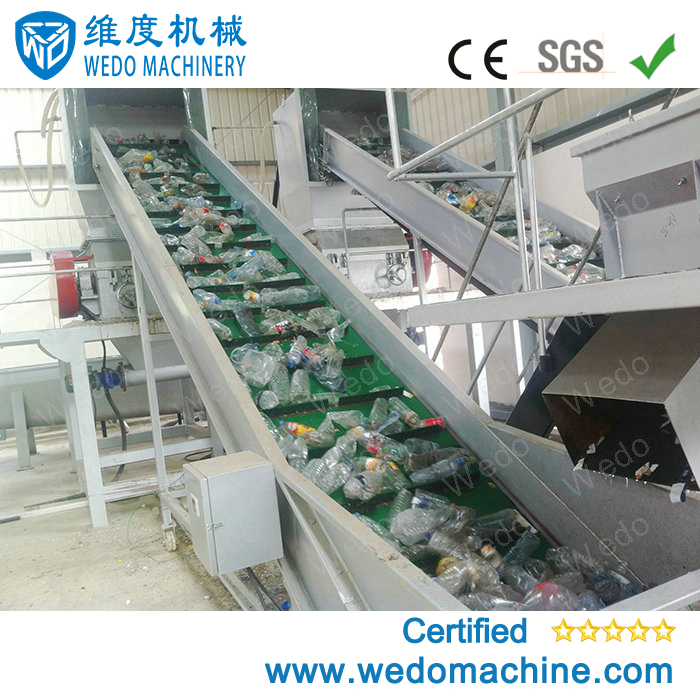

Belt Conveyor: Transports materials into the crusher via a crawler belt.
Label Remover: Specifically designed to strip labels from the bottles.
Manual Sorting Belt: Allows for manual removal of remaining labels and color separation.
Hot Washer: Uses detergent and heat to remove oil, sand, and stubborn contaminants.
High-speed Friction Washer: High-speed vanes combined with water spray provide deep cleaning.
Dewatering: Efficiently removes water from flakes, reducing moisture content to less than 2%.

Technical Data

Specification	1000kg/h	1500kg/h	2000kg/h
Workshop (M)	60L × 10W × 6H	70L × 10W × 6H	90L × 18W × 6H
Labor Required	8 Persons	10 Persons	14 Persons
Installation Power	240KW	307KW	420KW
Water Needed	4~5 Ton/h	6~8 Ton/h	8~10 Ton/h

Production & Service Process

Frequently Asked Questions (FAQ)

Q1: What materials can this recycling machine handle? A1: It is primarily designed for PET plastic bottles, but the system can also effectively separate PP/PE caps and PVC labels during the process.

Q2: What is the final moisture content of the PET flakes? A2: Thanks to our high-efficiency dewatering machine, the final moisture content is controlled to be less than 2% (typically max 1.5%).

Q3: Is the production line customizable? A3: Yes, the entire PET recycling line can be custom-designed based on the contamination level of the input bottles and your specific output requirements.

Q4: What are the main components used in the machine? A4: We use high-quality global brands including Siemens motors, ABB inverters, Omron temperature controls, and SKD11 blade materials.

Q5: Can I produce PET pellets directly with this line? A5: This line produces clean PET flakes. To produce pellets, we also supply follow-up PET pelletizing machines to complete the process.

Q6: What is the purity of the final PET flakes? A6: The system achieves high purity with metal content max 20ppm and total impurities around 320ppm.
