Plastic Pet Cosmetic Bottle Making Machine

1 / 5

Plastic Pet Cosmetic Bottle Making Machine

Type:	Stretch Blow Molding Machine
Automatic Grade:	Automatic
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.ZQ-B1500-2

Max Volume2000ml

Products Output2400-2600bph

Number of Cavity2 Cavities

Auto SystemsFully Automatic

Raw MaterialPET

CertificationCE, ISO9001:2008

HS Code8477300000

Product Description

Plastic PET cosmetic bottle making machine

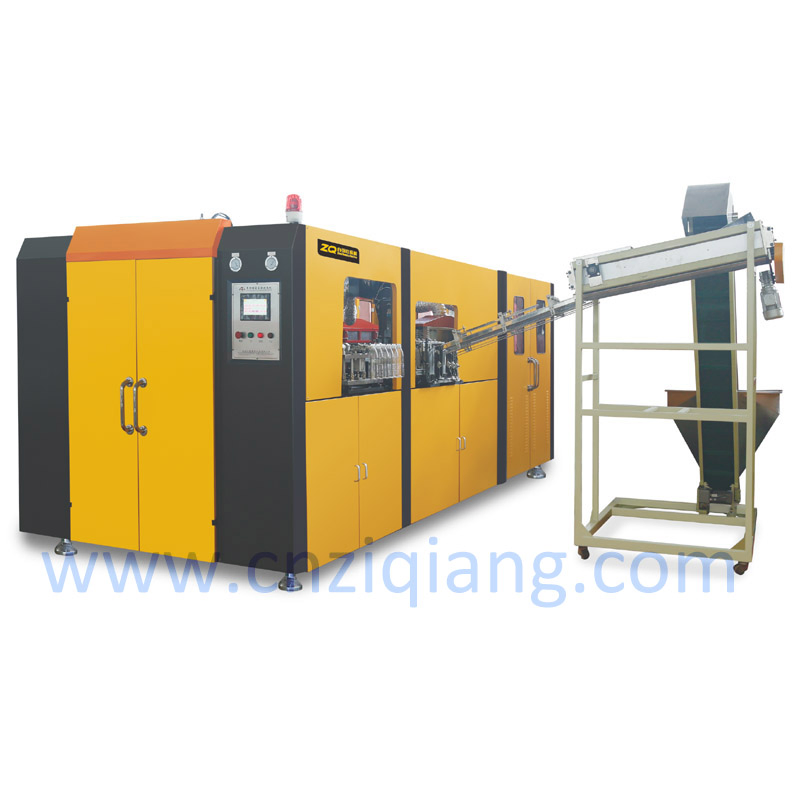

ZQ-B1500-2 full-automatic PET stretch blow molding machine is a stable two-step solution. It features 1 to 2 cavities with a maximum capacity of 0.6L to 1.5L. It is ideal for producing carbonated, mineral, pesticide, cosmetic, and wide-mouth containers made from PET or PP.

Key Advantages:

High Automatization & Intelligence
Precise Infrared Heating System
High Speed: Up to 8000BPH (6-cavity)
No Contamination (Closed Production Zone)
Low Consumption (Electricity, Air, Water)
High Transparency & Low Noise

Technical Settings & Features

OMRON PLC color display (Japan)
FESTO Pneumatic parts (Germany)
DELTA Servo motor controller
Stable performance with advanced PLC
Automatic preform conveying
Strong clamping force with double crank links
Integrated chilling system for ideal effects

Equipment Information Table

TYPE	ITEM	ZQ-B1500-2	ZQ-B1500-3	ZQ-B1500-4
CONTAINER	Number of cavity	2 cavities	3 cavities	4 cavities
	Output (pcs/hr)	2400-2600	2800-3300	3800-4200
	Max. Volume	2.0L	2.0L	2.0L
	Max. Height	300-330mm	300-330mm	300-330mm
ELECTRICAL	Max. Heating Power	27kw	36kw	60kw
ELECTRICAL	Actual Consumption	18kw	22kw	40kw
MACHINE	Dimension (m)	3.25x1.5x2.1	4.5x2.1x2.1	4.7x2.1x2.1
MACHINE	Weight	3.1ton	3.9ton	4.1ton

*Note: Specifications are subject to change for improvement. Custom production accepted.

Product Gallery

Frequently Asked Questions (FAQ)

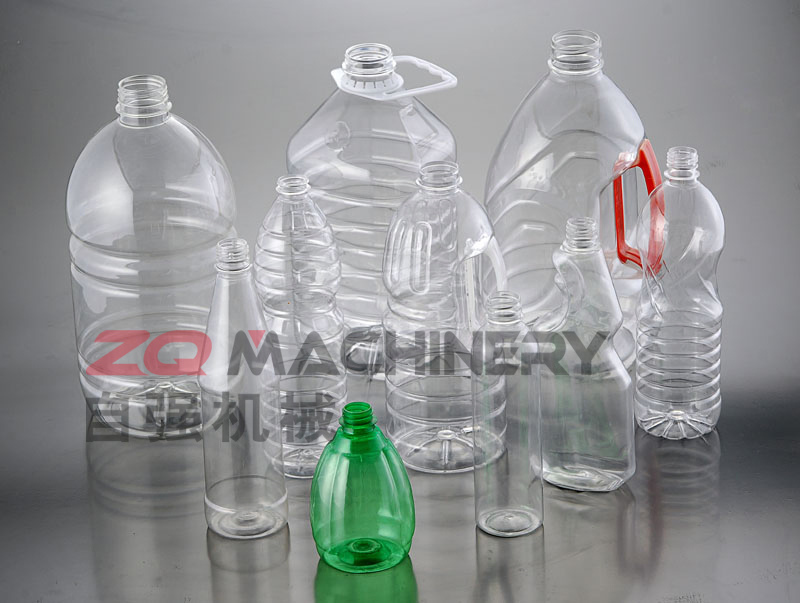

Q1: What types of bottles can this machine produce? A: It can blow PET and PP bottles for carbonated drinks, mineral water, pesticides, cosmetics, and hot-filling containers.

Q2: What is the maximum production capacity? A: Depending on the model, the output ranges from 2400 pcs/hr (2 cavities) up to 4200 pcs/hr (4 cavities).

Q3: Does the machine support automatic preform loading? A: Yes, it features an automatic conveyor system for conveying preforms to the heating unit.

Q4: What are the main electrical components used? A: The machine uses world-famous brands including OMRON PLC (Japan), FESTO pneumatics (Germany), and DELTA servo motors (Taiwan).

Q5: Is it easy to maintain and operate? A: Yes, it offers a user-friendly touch screen interface with both automatic and manual operating modes for easy maintenance.

Q6: What is the rejection rate of the finished products? A: The machine is highly efficient with a low rejection rate of less than 0.2 percent.
