Plastic Pet Bottle Molding Machine

Type:	Special Structure Bottle Blowing Machine
Automatic Grade:	Automatic
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

ZQ-M600-4

Special for Volume

100-600ml Pet Bottle

Number of Cavity

4 Cavities

Products Output

4000-4500bph

Auto Systems

Fully Automatic

Delivery Date

30 Days

Raw Material

PET

Certification

CE & ISO 9001

HS Code

8477300000

Production Capacity

30 PCS/Month

Product Description

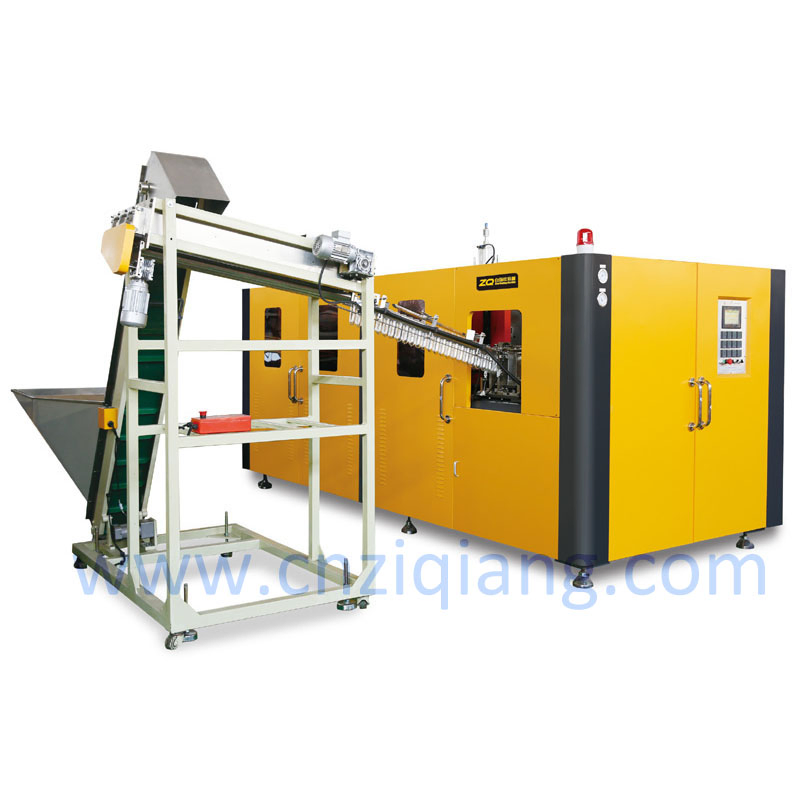

4 Cavity Plastic PET Bottle Molding Machine

By structure optimization and technical innovation, the cost-effective ZQ-M series of blowing machines have been developed on the basis of ZQ-A series. These machines are double-purpose units, offering flexibility based on preform types.

✓ For ordinary preforms: Full automatic operation with preform auto-loader.

✓ For special preforms: Manual loading available for versatile production.

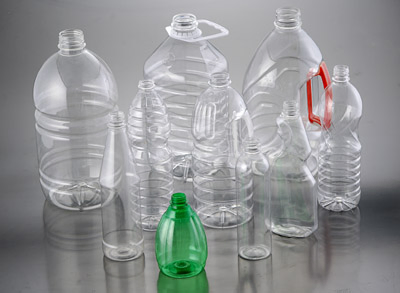

✓ Versatility: Produces shapes for carbonated, mineral, pesticide, cosmetics, and wide-mouth containers (0.6L to 10L).

Key Performance Advantages: Low rejection rate, high speed, stable running, and easy operation. The ZQ-M600-4 achieves speeds ≥ 4500 bottles/hour.

Premium Component Settings:

PLC Colour Display: OMRON (Japan)
Pneumatic Parts: FESTO (Germany)
Preform Transfer Controller: Servo motor DELTA (Taiwan)
Electrical Parts: World-famous brands

TYPE	ITEM	ZQ-M600-1	ZQ-M600-2	ZQ-M600-3	ZQ-M600-4
CONTAINER	Number of Cavity	1	2	3	4
CONTAINER	Output (pcs/hr)	1200-1500	2000-2300	3000-3300	4000-4500
CONTAINER	Max. Volume	0.6L	0.6L	0.6L	0.6L
ELECTRICAL	Max. Heating Power	12kw	22kw	32kw	48kw
AIR SYSTEM	Blowing Pressure	≤30kg/cm²	≤30kg/cm²	≤30kg/cm²	≤30kg/cm²
MACHINE	Dimension (m)	2.5×1.4×1.7	2.9×1.55×1.8	3.4×1.4×1.8	3.95×1.65×1.85
MACHINE	Weight	1.7T	1.8T	2.1T	2.5T

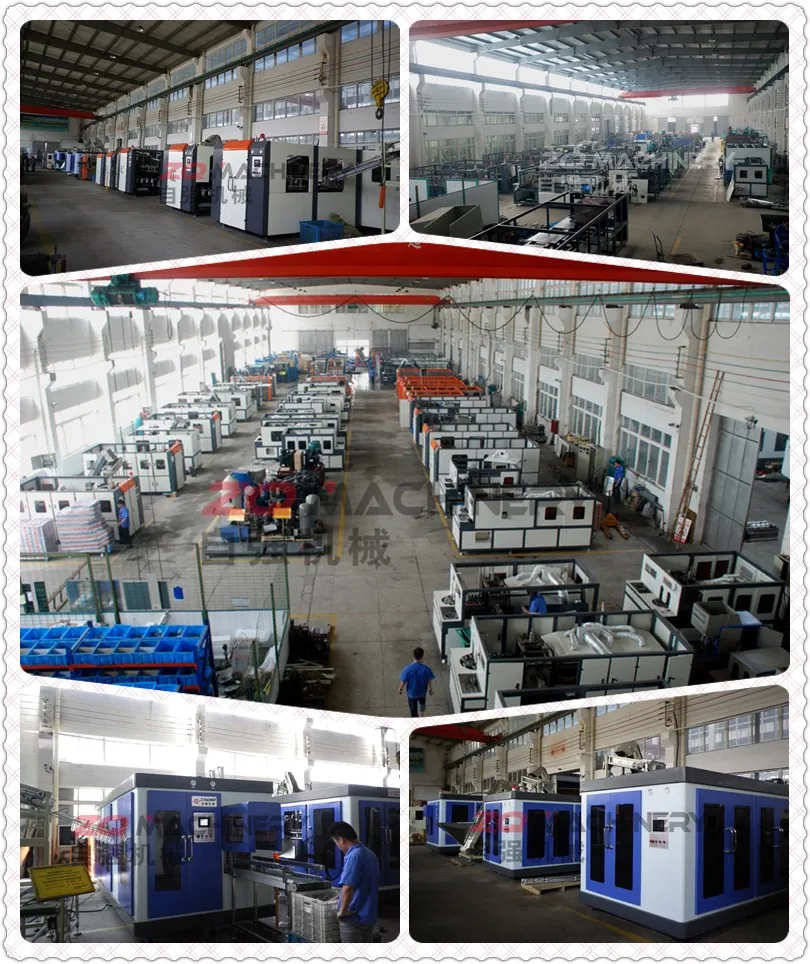

Plastic Pet Bottle Molding Machine Main View

Plastic Pet Bottle Molding Machine Parts

Frequently Asked Questions

What is the maximum production capacity of the ZQ-M600-4?

The ZQ-M600-4 model features 4 cavities and can achieve a production output of 4000 to 4500 bottles per hour.

What types of bottles can this machine produce?

It is designed for PET and PP containers ranging from 100ml to 600ml, including carbonated, mineral water, pesticide, cosmetics, and wide-mouth bottles.

Does the machine support manual loading for special preforms?

Yes, the ZQ-M series is a double-purpose system. It can run fully automatically with an auto-loader for standard preforms or be operated manually for special preforms.

Which brands of components are used in the machine?

The machine utilizes high-quality international brands, including OMRON PLC (Japan), FESTO pneumatic parts (Germany), and DELTA servo motors (Taiwan).

What are the power requirements for the ZQ-M600-4?

The ZQ-M600-4 has an installation power of 52kw, with an actual power consumption of approximately 32kw.

What is the lead time for machine delivery?

The standard delivery date is approximately 30 days from the order confirmation.
