Basic Specifications
Model NO.:Tsh-75p
Type:Plastic Granules Extruder Machine
Screw:Twin-Screw
Automation:Automatic
Output:400~600 kg/h
Processing:PP, PE, ABS, PS, PA etc.
Motor:Siemens, Weg
Inverter:ABB, Toshiba, FUJI
Certifications:CE, ISO, TUV, 30 Patents

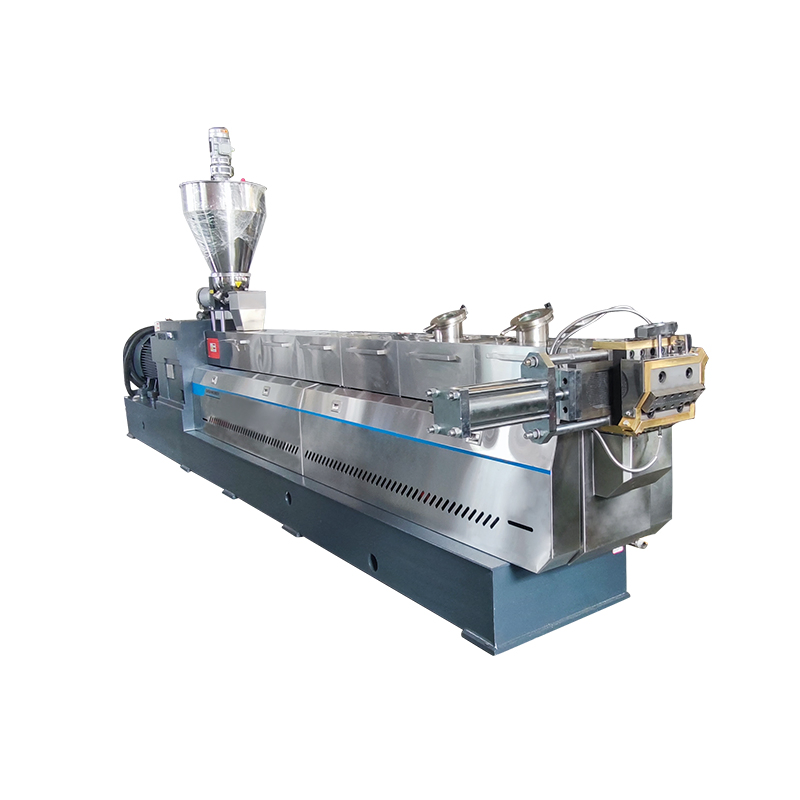

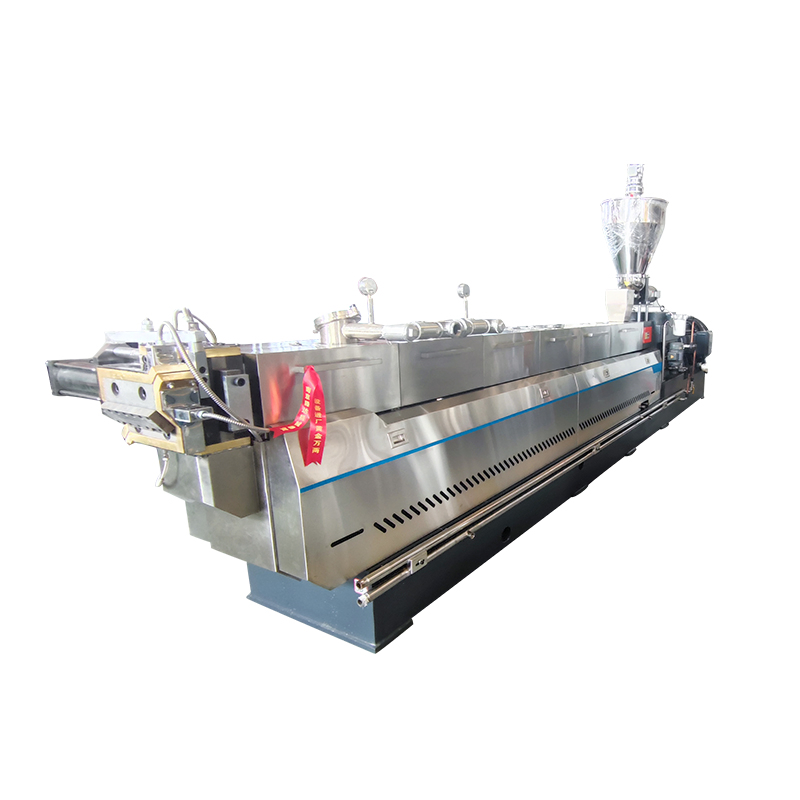

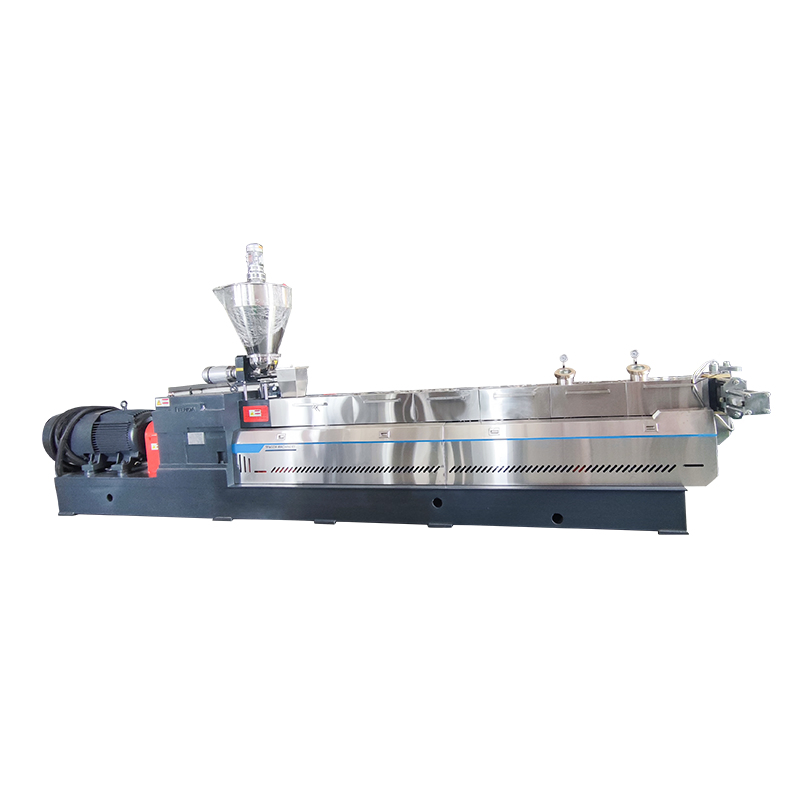

PET Recycling Twin Screw Extrusion Machine
Product model for your choosing (Notes: Different raw materials affect the output. Please consult for the correct model recommendation):
| Type |
TSH-20 |
TSH-35 |
TSH40 |
TSH52 |
TSH65 |
TSH75 |
TSH95 |
| Screw Dia (mm) |
22 |
35.6 |
41 |
51.4 |
62.4 |
71 |
93 |
| Motor Power (kW) |
4 |
18.5 |
30 |
55 |
90 |
132 |
315 |
| L/D Ratio |
32-60 |
32-68 |
32-68 |
32-68 |
32-68 |
32-68 |
32-68 |
| Output (Kg/h) |
2-15 |
15-95 |
70-120 |
155-255 |
255-400 |
450-750 |
950-1600 |
Key Product Details

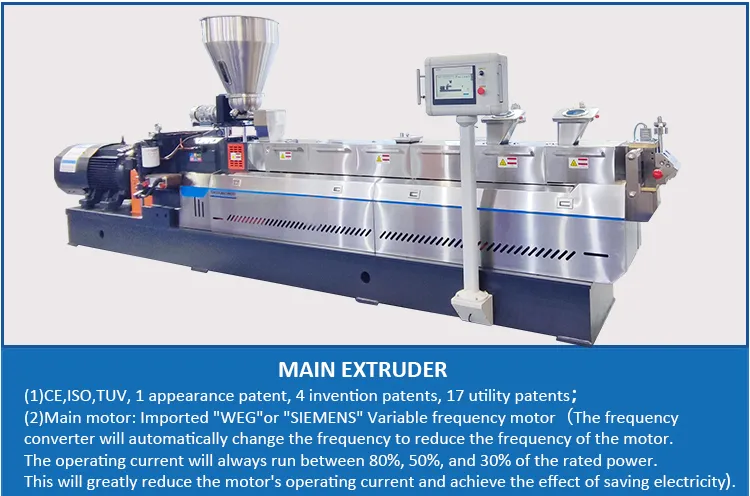

1. Twin Screw Main Extruder
Uses Imported "WEG" or "SIEMENS" variable frequency motors to achieve high energy saving effects by operating at 30%-80% of rated power.

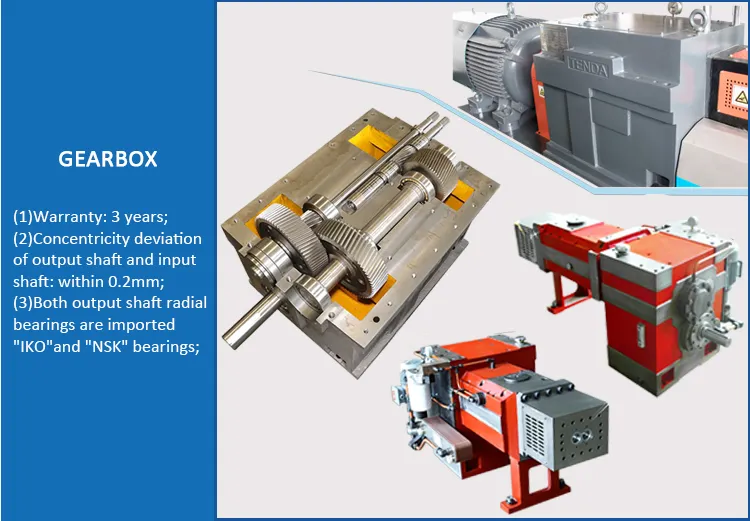

2. High Precision Gearbox
Features concentricity deviation within 0.2mm and uses imported "IKO" and "NSK" radial bearings.

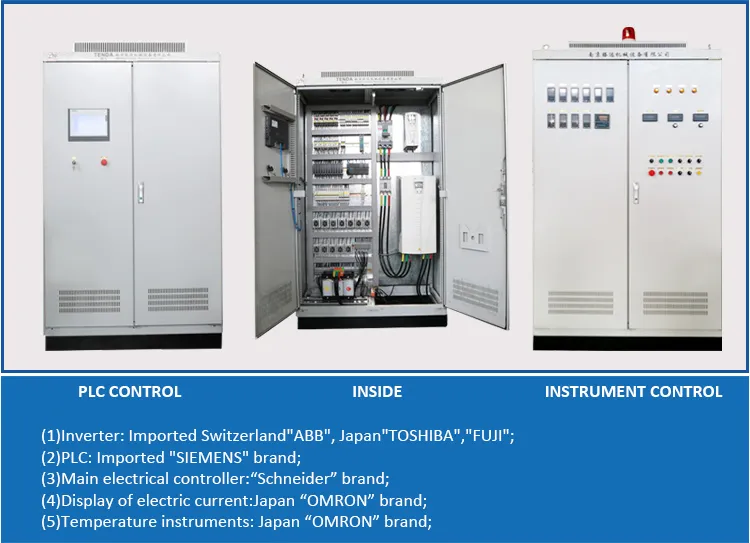

3. Advanced Electric Cabinet
Equipped with ABB/Toshiba/FUJI inverters, Siemens PLC, Schneider controllers, and Omron temperature instruments.
4. Bimetal Wear-resistant Barrel
45# steel base with α-101 wear-resistant and corrosion-resistant alloy bushing for extended service life.
5. Precision Screw Elements
Made of W6Mo5Cr4V2 high-speed tool steel (60~62HRC) with a building-block design for flexible process adjustment.
Machine Applications
Applicable for: Color masterbatch, filler masterbatch, engineering plastics, reinforced materials, recycling plastics, and biodegradable materials.

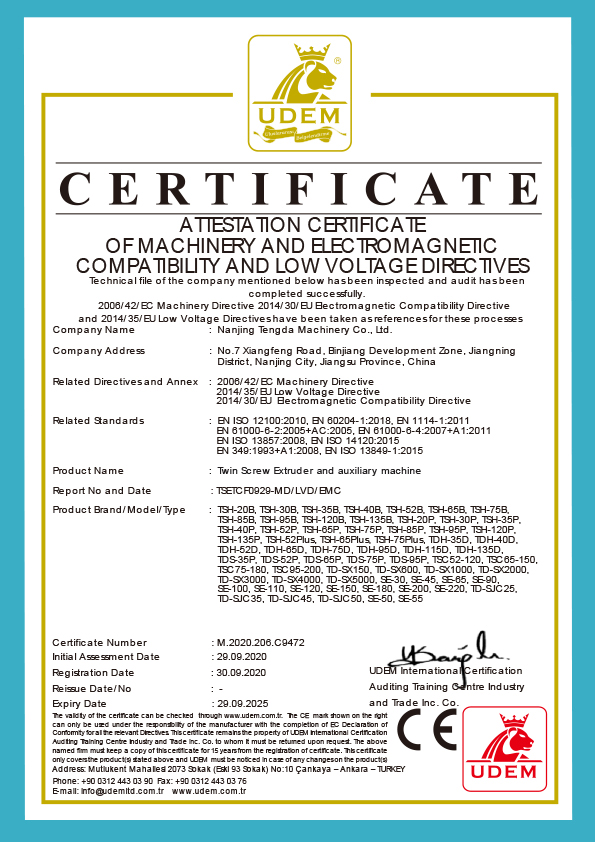

Certificates & Global Presence
Frequently Asked Questions
Q1: What materials can this twin screw extruder process?
A: It is designed for various plastics including PET recycling, PP, PE, ABS, PS, PA, engineering plastics, and biodegradable materials.
Q2: How does the machine achieve energy savings?
A: By using high-quality motors from WEG or SIEMENS combined with frequency converters, the motor can run at reduced frequencies, significantly lowering power consumption.
Q3: What is the warranty on the gearbox?
A: The gearbox comes with a 3-year warranty, ensuring long-term reliability for your production line.
Q4: Are the screw elements replaceable?
A: Yes, the screws are designed on a building-block principle with involute splines, allowing for easy adjustment or replacement based on specific process requirements.
Q5: Does the machine support overseas service?
A: Yes, overseas service is provided to ensure smooth installation and operation for international clients.
Q6: What certifications does the equipment hold?
A: The equipment has passed ISO, TUV, and CE certifications, and the manufacturer holds more than 30 patents.
