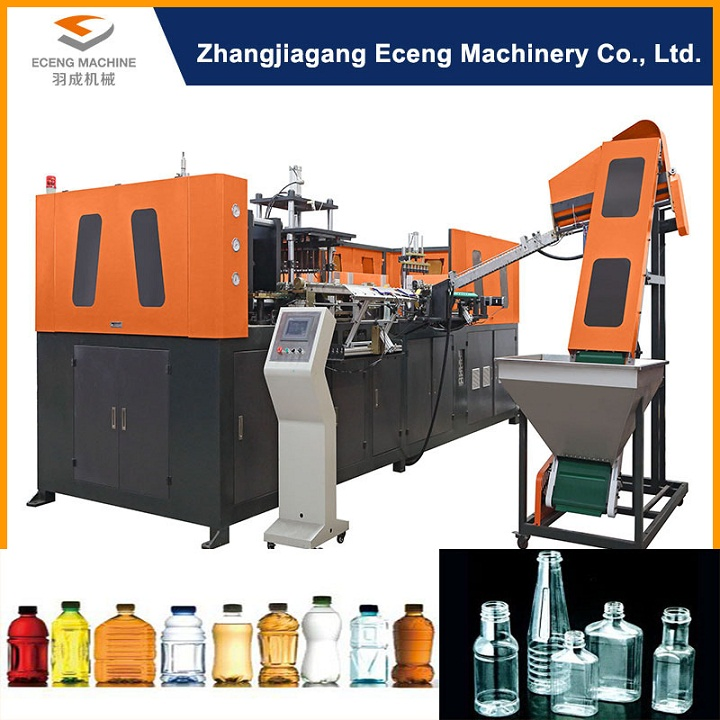

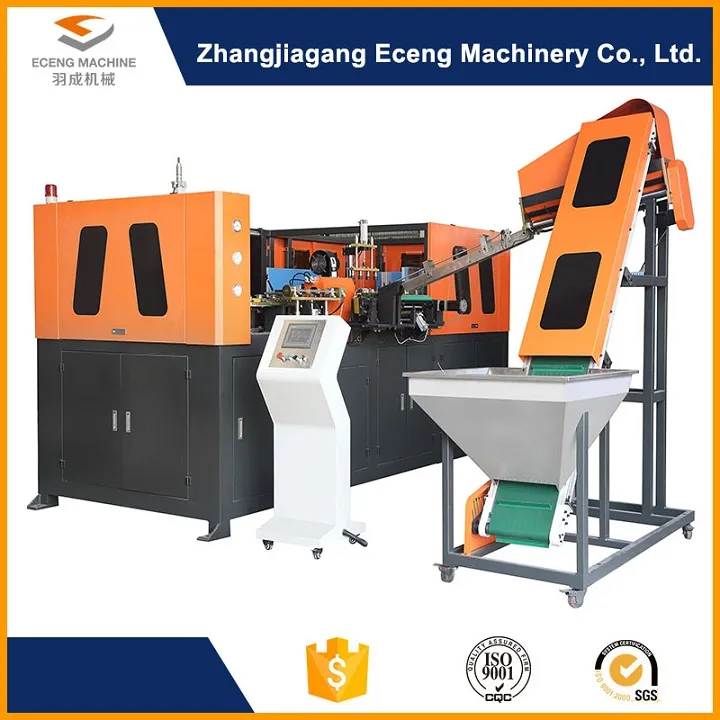

Pet Machine to Make Plastic Bottles

Customization:	Available
Type:	Stretch Blow Molding Machine
Raw Material:	PET

Send Inquiry

Product Description

📊 Basic Information

Model NO.

YCQ-2L-2

Method

Stretch Blow

Automation

Automatic

Certification

CE, ISO9001:2008, QS, GMP

Bottle Material

PET

Bottle Volume

150ml-2L

Output

1500bph

Driven Type

Pneumatic

Cavity

Power

33kw

⚙️ Product Description

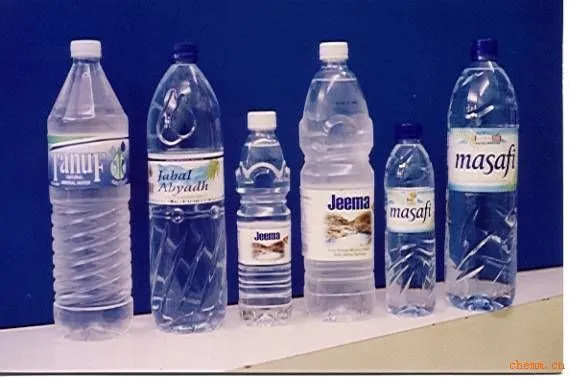

PET machine to make plastic bottles with 2 cavities is specially designed to produce water bottles and PET bottles with high heat resistance for hot filling packages such as juice and tea. It adopts multiple blowing to reduce residual stress, resulting in a shaped bottle with slight shrinkage during hot filling.

The PET bottle produced can stand temperatures over 90°C depending on the type of PET material with different crystallization rates. The neck-up blowing mode protects the bottle preform from damage and ensures stable performance. With high strength, good transparency, and low production costs, YCQ-2L-2 plays a significant role in the hot filling package market.

✓ Stable performance with advanced PLC.

✓ Conveying preforms automatically with conveyor.

✓ Infrared preheater for swift heat distribution.

✓ High safety with automatic-locking apparatus.

✓ Low noise and no contamination via air cylinder drive.

✓ Strong clamping force with double crank links.

✓ Low rejection rate: Less than 0.3 percent.

🧩 Key Components

Blowing Cylinder

Festo (Germany)

Valves

Festo (Germany)

PLC

Mitsubishi (Japan)

Touch Screen

Hitech (Taiwan)

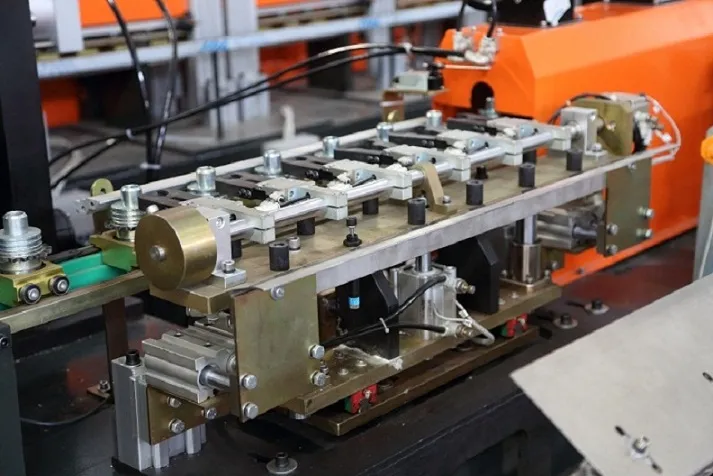

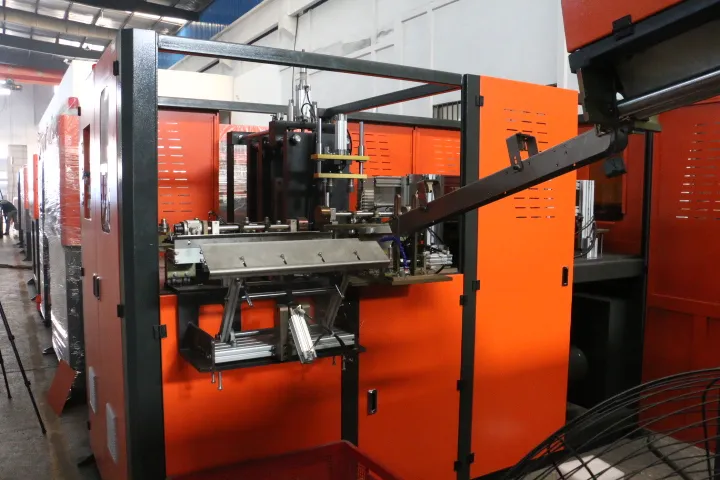

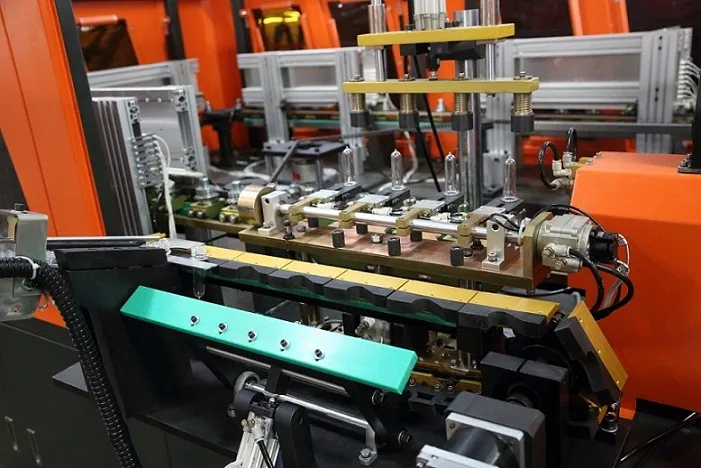

🖼️ Product Display

📋 Technical Specification

Category	Parameter	Specification (YCQ-2L-2)
Bottle Specs	Theory Output	2400-2700 bph
	Max. Volume	2L
	Max. Diameter	100mm
	Max. Height	330mm
Power	Light Tubes	32pcs
	Heating Power	24KW
	Actual Consumption	8.1KW
Air Pressure	Work Pressure	7-9kg/cm2
Air Pressure	Blow Pressure	25-35kg/cm2

🛠️ Our Services

After-Sales Support: We provide timely bills of loading, engineer installation at your factory, operating manuals, and employee training. A one-year warranty with free spare parts is included.

Customized Solutions: We design machines according to your requirements (material, power, filling type) based on years of industry experience.

❓ Frequently Asked Questions

Q1: What range of bottle sizes can this machine produce? A: This machine is designed for PET bottles ranging from 150ml to 2 liters in volume.

Q2: Is the machine suitable for hot-fill products? A: Yes, it is specially designed for hot-filling packages like juice and tea, standing temperatures over 90°C.

Q3: What is the production capacity of the YCQ-2L-2? A: The theoretical output is between 2400 to 2700 bottles per hour.

Q4: Does the machine come with a warranty? A: Yes, we provide a one-year warranty along with free spare parts including seals and heating tubes.

Q5: What brand of components are used in the machine? A: We use high-quality international brands such as Festo (Germany), SMC (Japan), Mitsubishi (Japan), and Omron (Japan).

Q6: Do you provide installation and training? A: Yes, our engineers can visit your factory to install the equipment and train your staff on proper operation.
