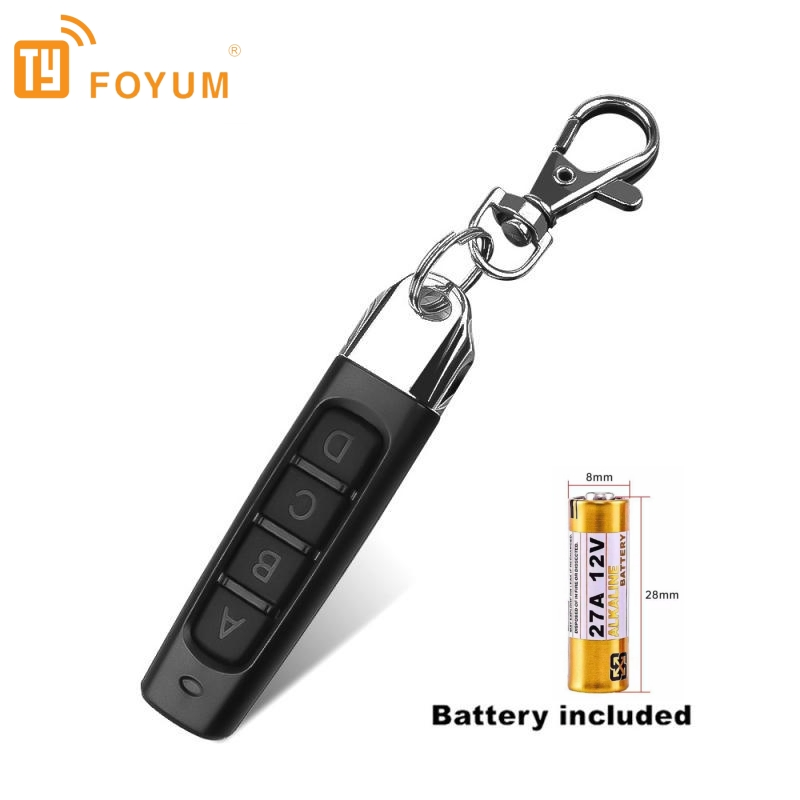

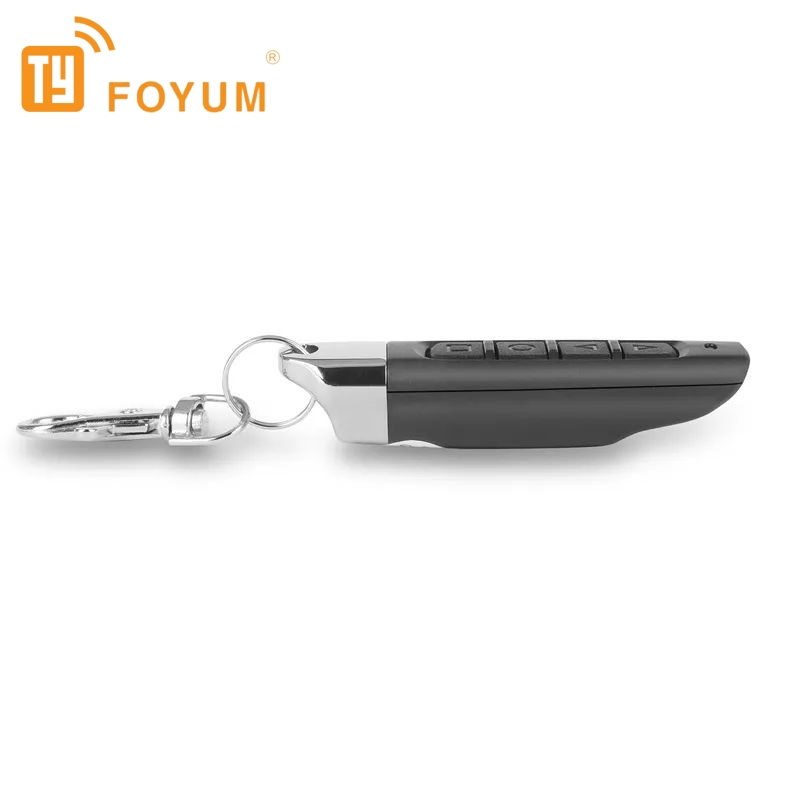

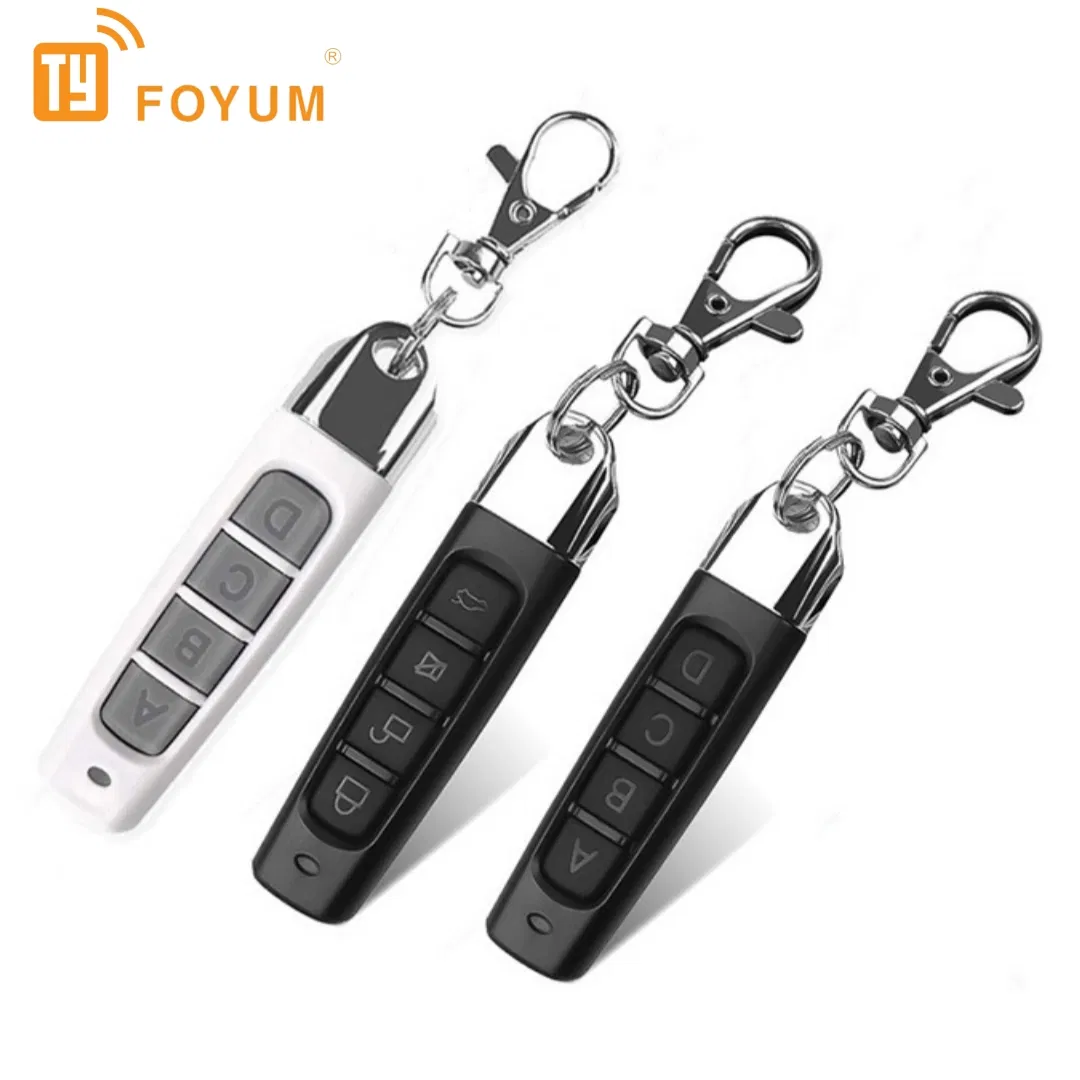

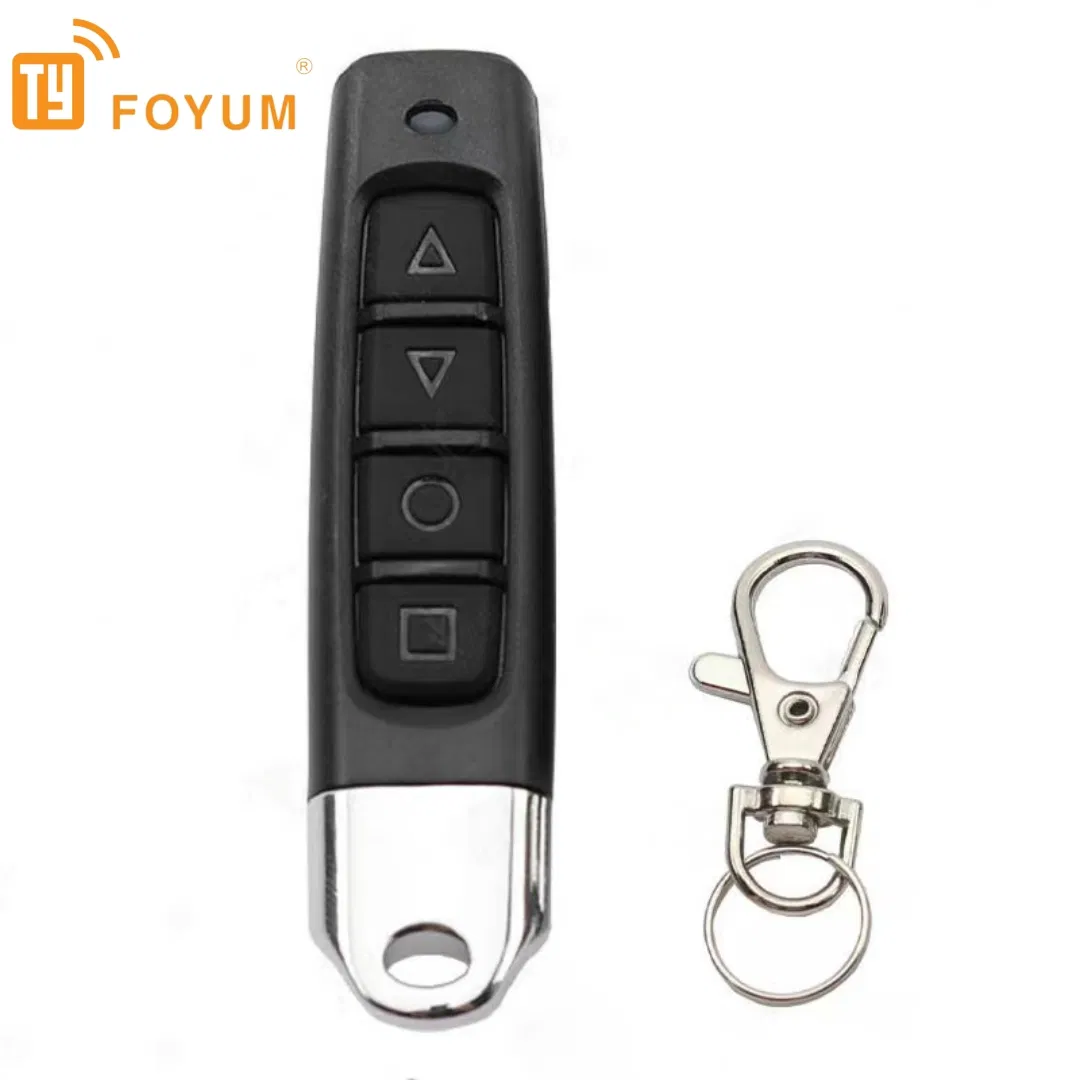

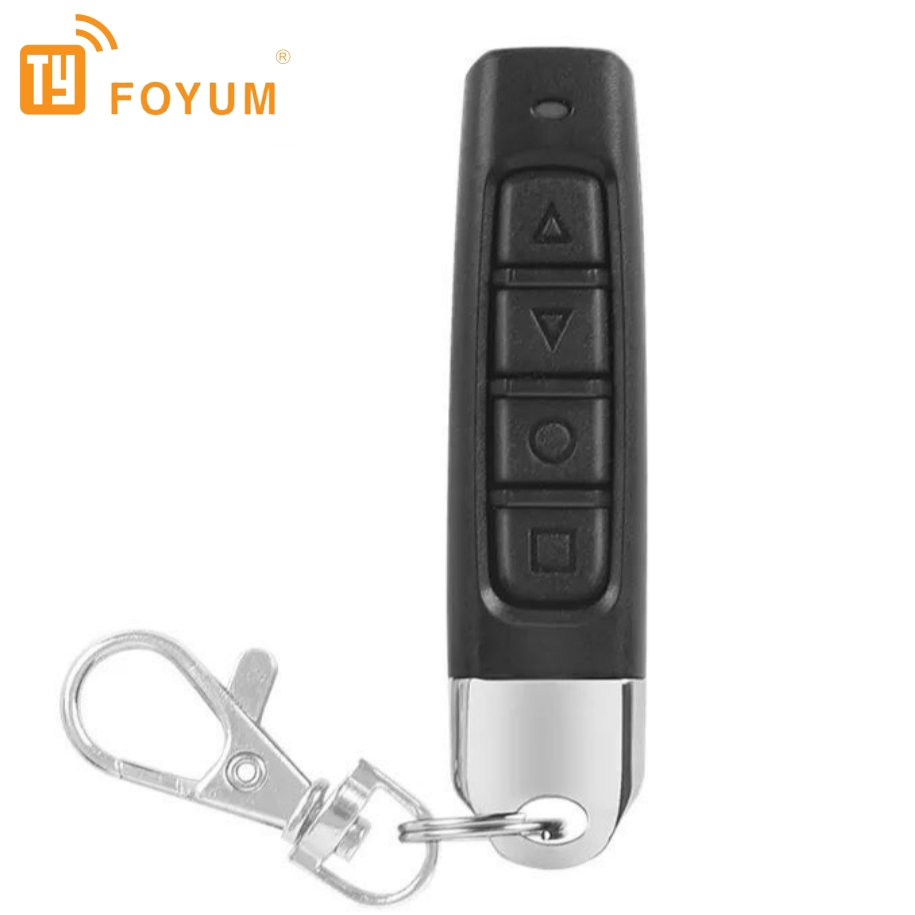

Mini Wireless RF Remote Control Face to Face 433MHz Clone Door Remote Control Duplicator

1 / 5

Mini Wireless RF Remote Control Face to Face 433MHz Clone Door Remote Control Duplicator

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

FDALJ01EN

Type

Remote Control

Certification

RoHS, CE

Universal

Transmission Distance

50-100m

Voltage

Material

Plastic

Battery Type

Button Battery

Frequency

433MHz

Function

Copy

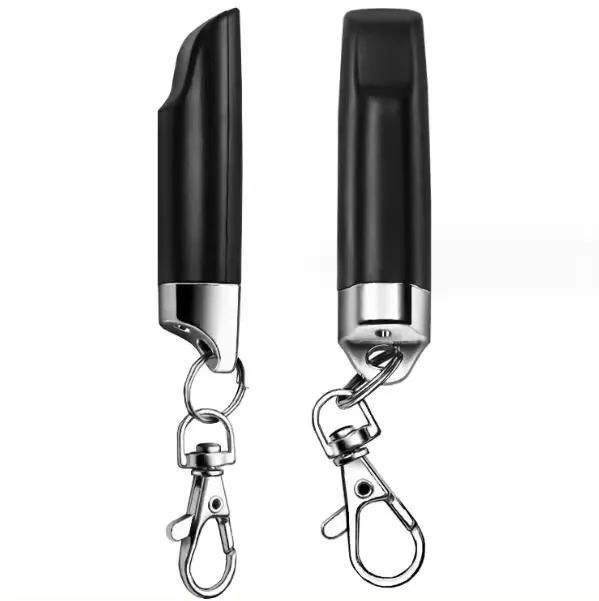

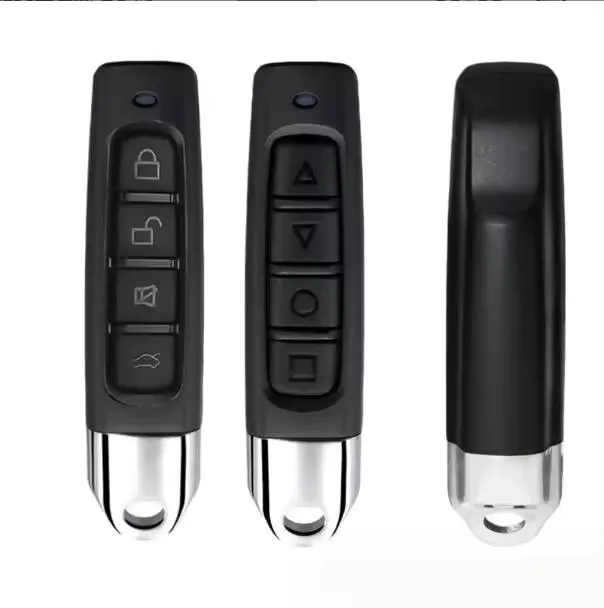

📸 Detailed Photos

⚙️ Operation Description

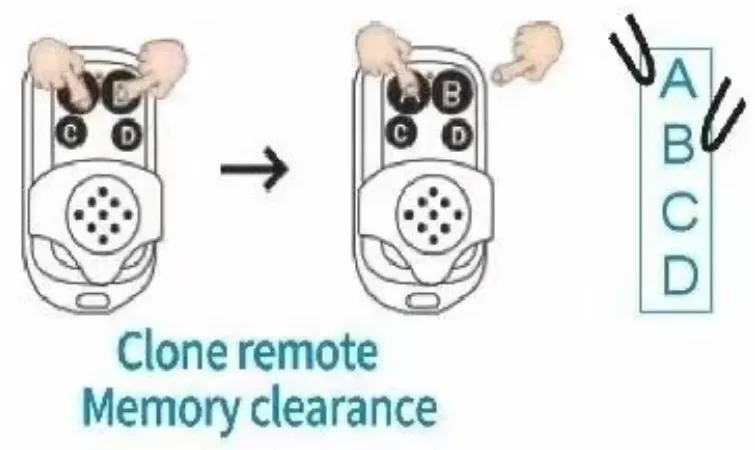

1. Clear Code

Press button "A" and "B" at the same time. When the LED flashes and turns off, click "B" button 3 times (while holding "A" key down). When the LED flashes, the memory code is successfully erased.

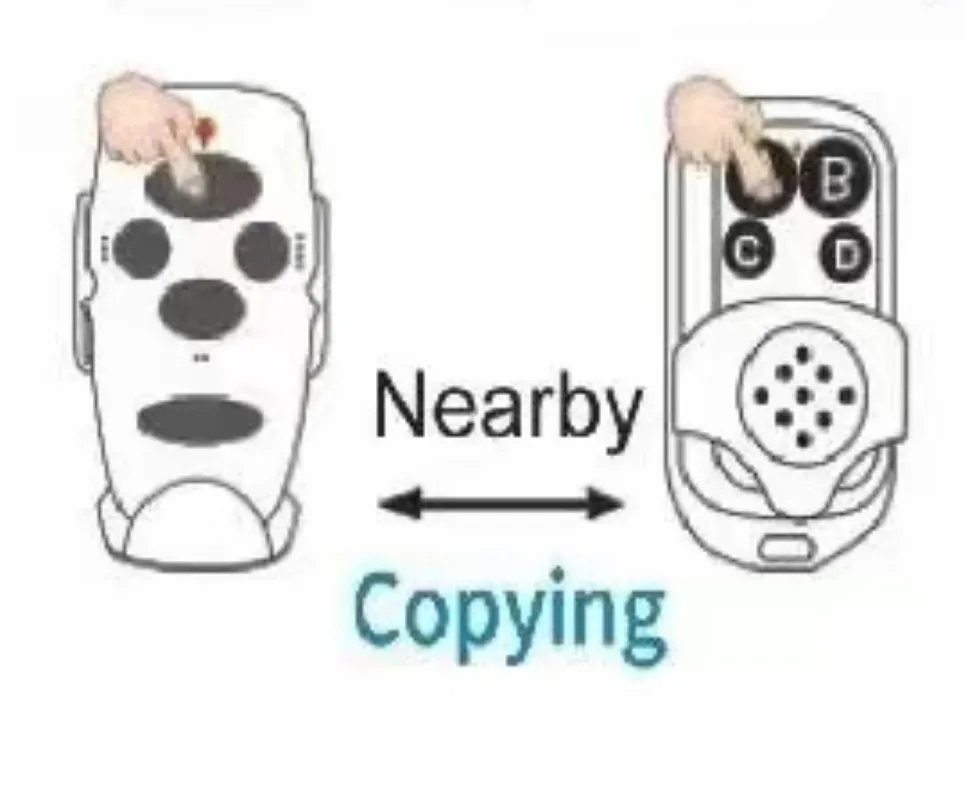

2. Copying

Place the original and clone remotes nearby. Press the desired button on both remotes simultaneously. When the LED indicator flashes continuously, release the buttons. Success Tip: If the cloned-button LED stays on when pressed, the code is successfully cloned.

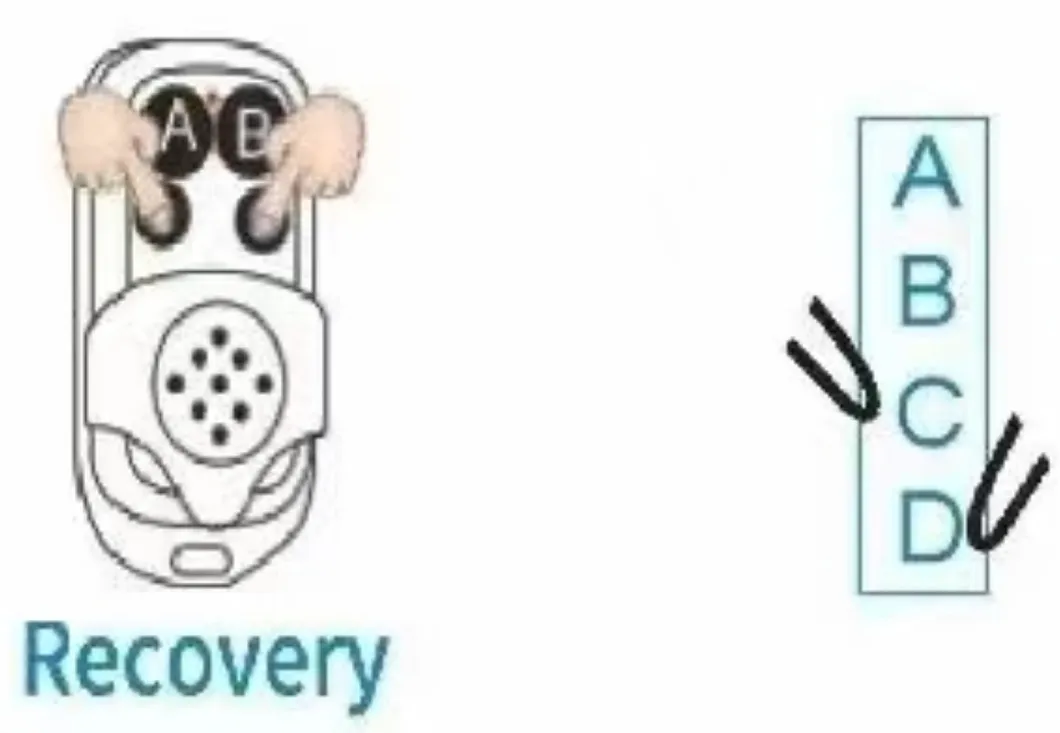

3. Recovery

If you erase the code by mistake, you can recover it by pressing buttons "C" and "D" at the same time for a few seconds. When the LED flashes, the codes are restored.

📋 Compatible Chips & Applications

Ideal for: Auto gates, garage doors, electric curtains, and more.

2260, 2262, PT2264, 5326, SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918 series, 527, 1527, 2240, HCS101, HCS200, HCS201 (part), HCS300, HCS301 (part).

* Supports CR2032/3V Battery | CE and ROHS Certified

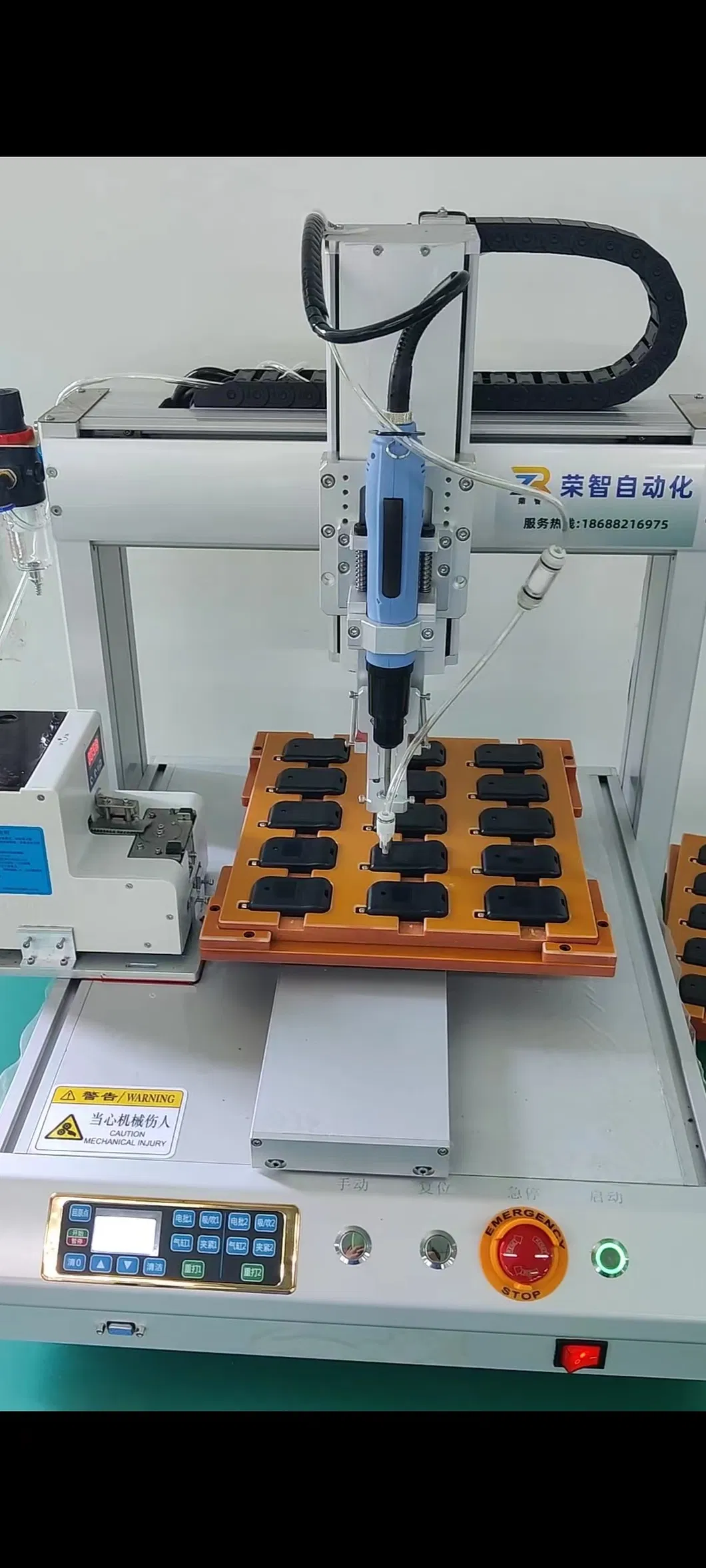

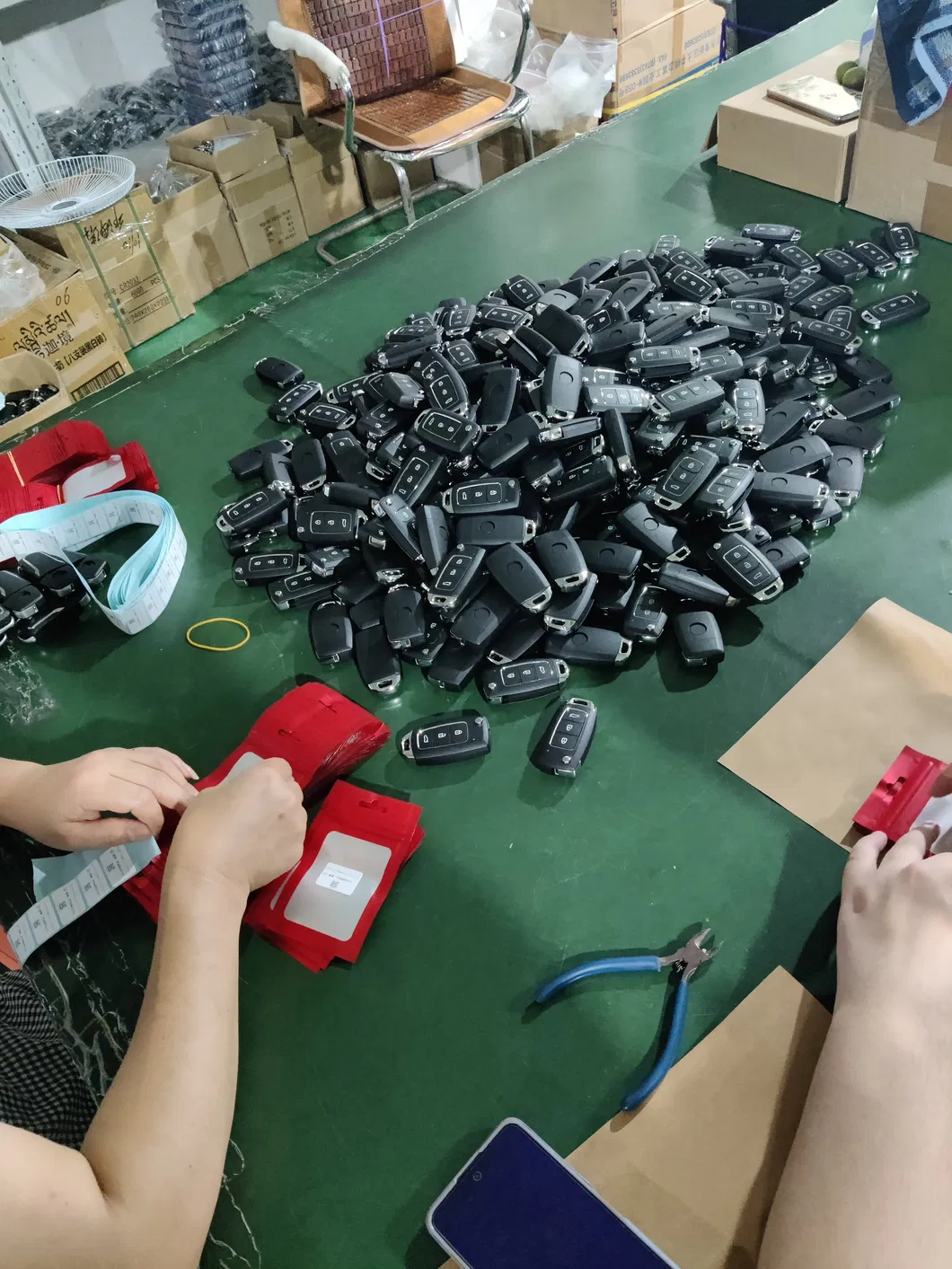

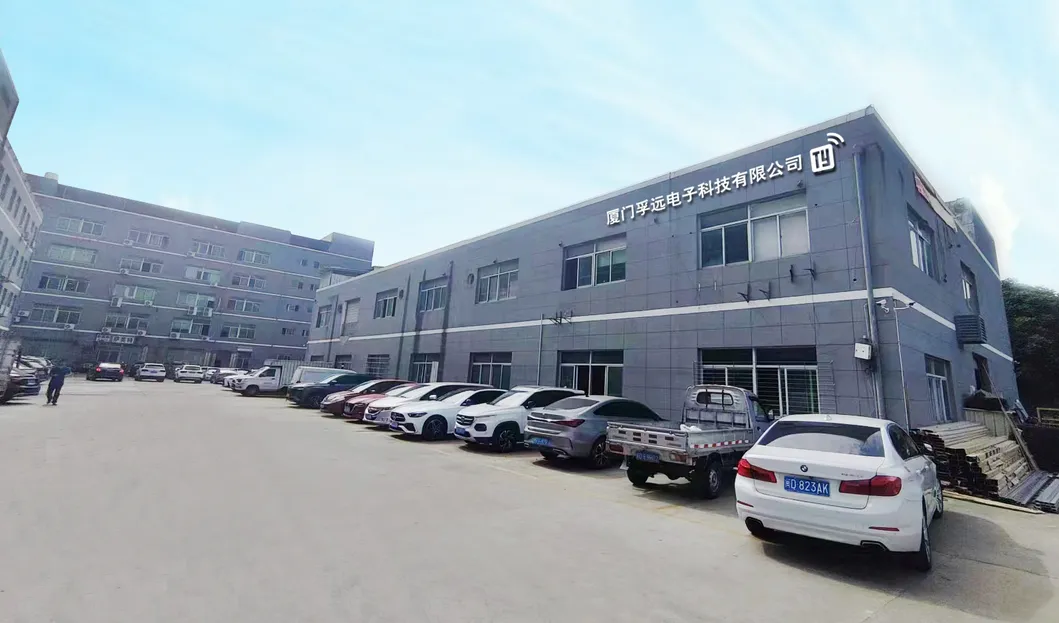

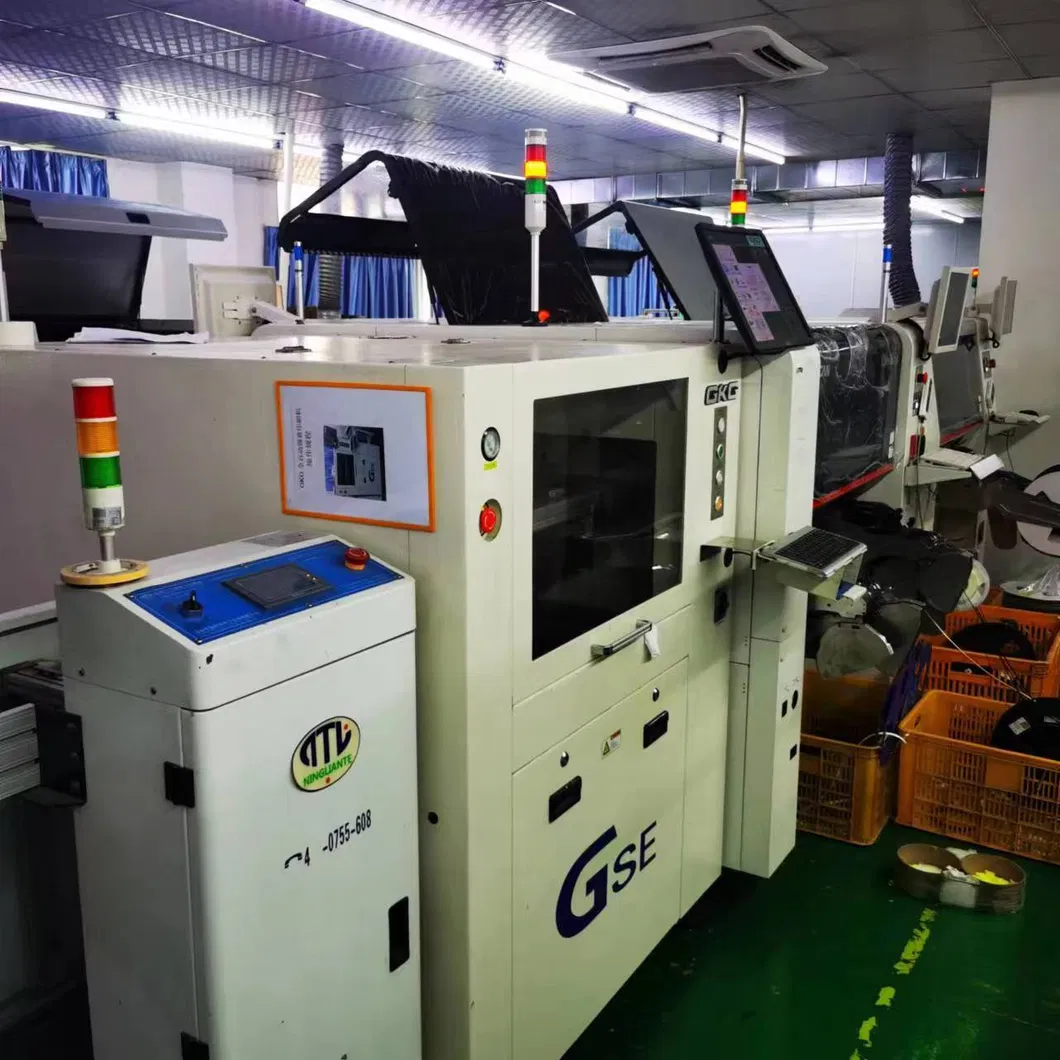

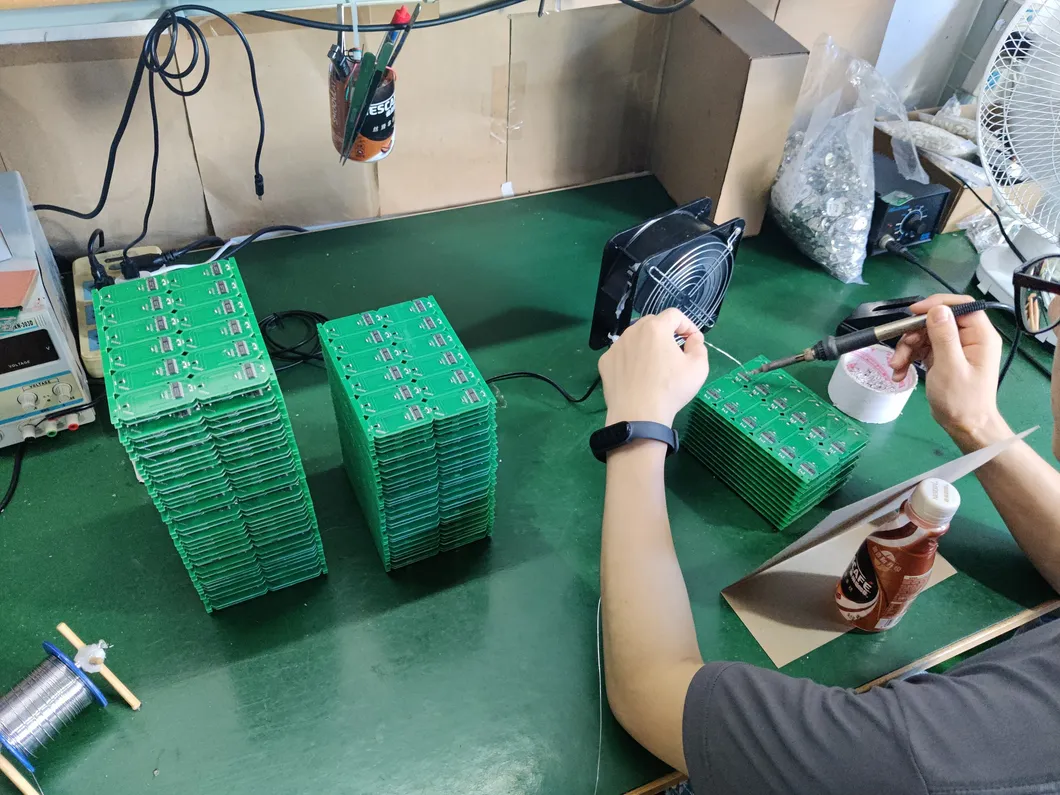

🏭 Production & Quality

Frequently Asked Questions

What frequency does this remote duplicator support?

This device specifically supports the 433MHz frequency, which is standard for most garage doors and gate openers.

How far is the transmission distance?

The effective transmission range is between 50 to 100 meters in open space.

Can I recover a code if I accidentally delete it?

Yes, simply press the C and D buttons simultaneously for a few seconds until the LED flashes to restore previously erased codes.

What type of battery does it use?

The remote uses a high-capacity button battery (CR2032 / 3V) for long-lasting performance.

Is this remote compatible with rolling code systems?

It is compatible with many fixed code and learning code chips (like 1527, 2262), and certain partial HCS rolling codes as listed in our compatibility table.

How do I know if the copy was successful?

After the cloning process, press the button on the new remote. If the LED indicator stays lit continuously, the code has been successfully cloned.
