Pillow block bearing is a bearing unit which combines rolling bearing with bearing seat. Most of the outer spherical bearings are made of spherical outer diameter, and are installed together with the bearing seat with a spherical inner hole, and the structure is diverse, and the versatility and interchangeability are good.

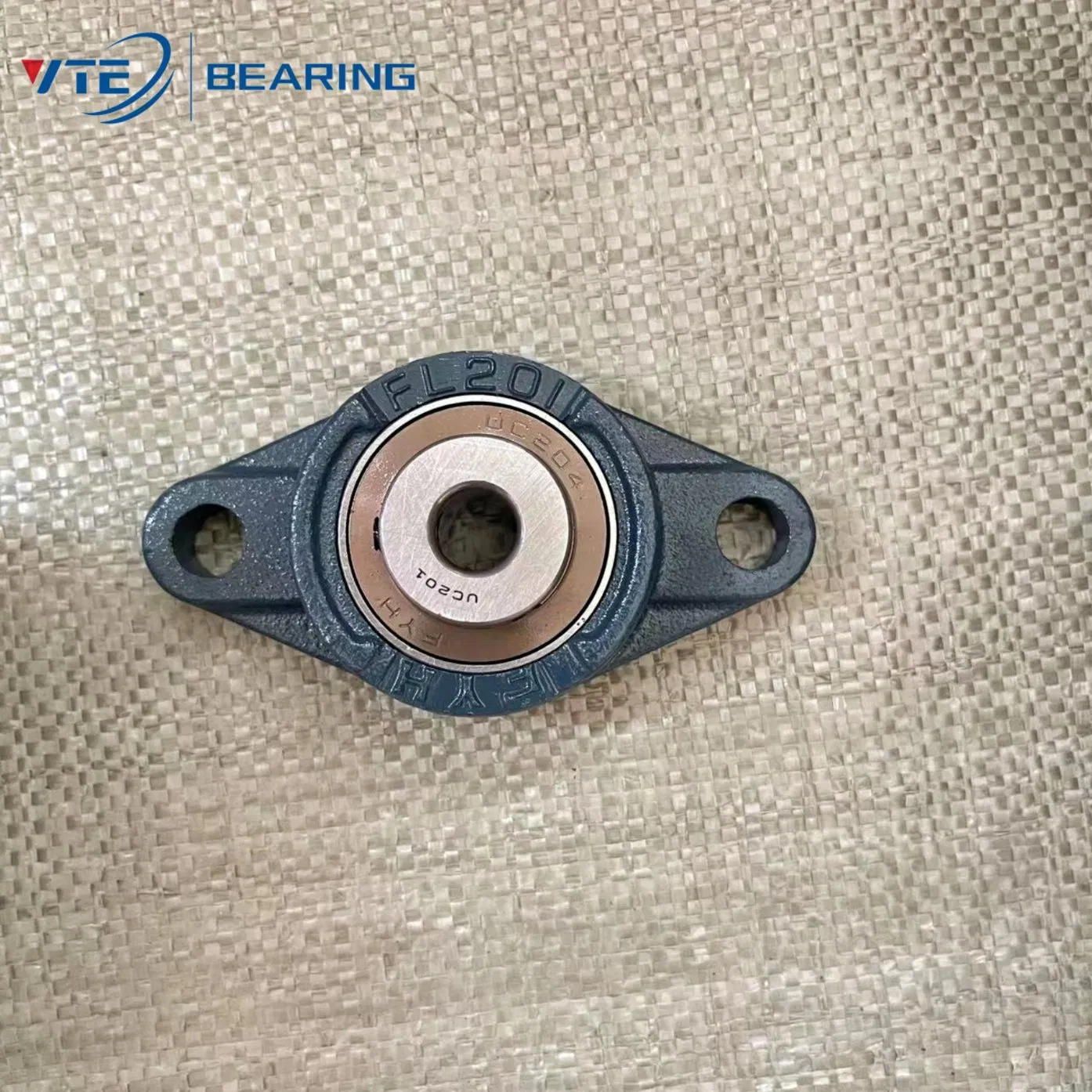

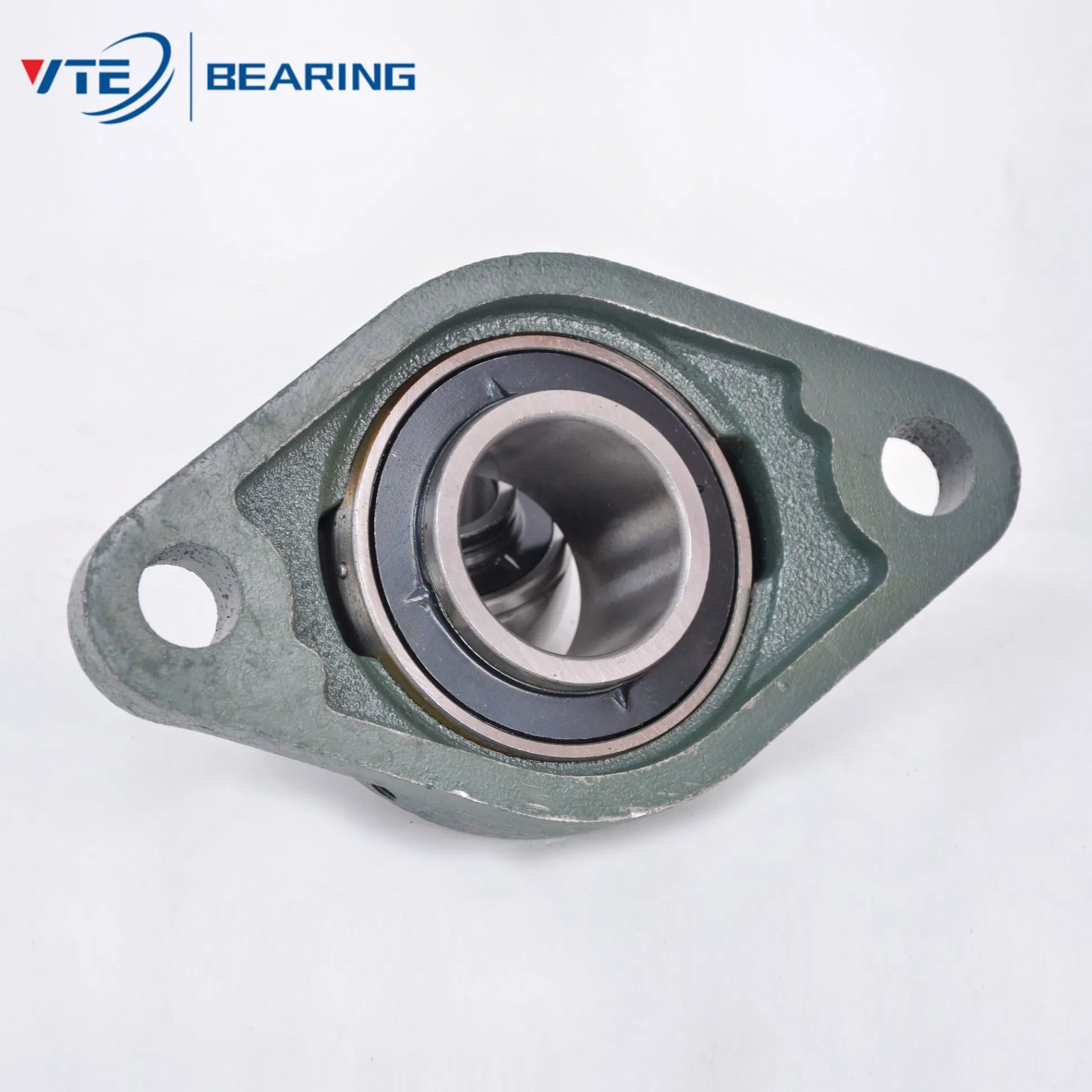

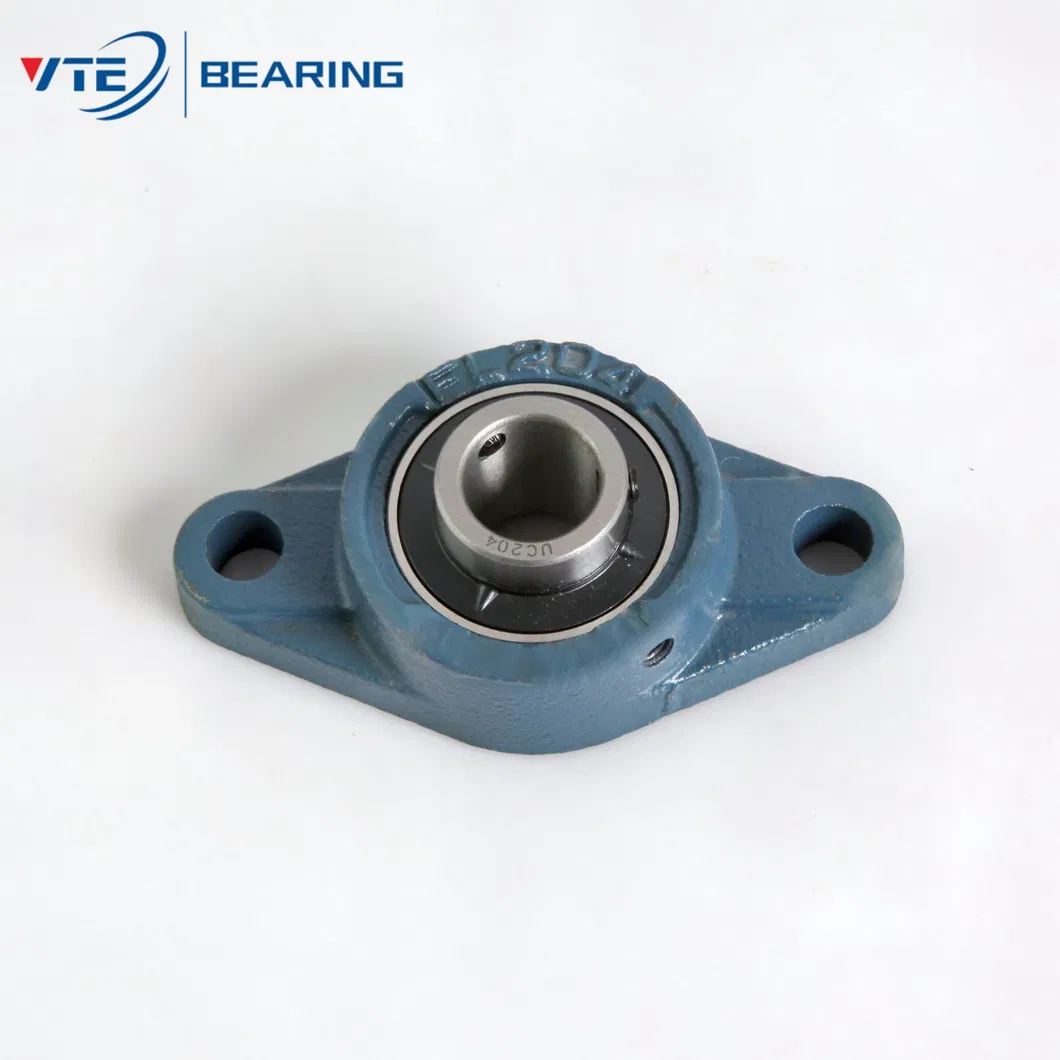

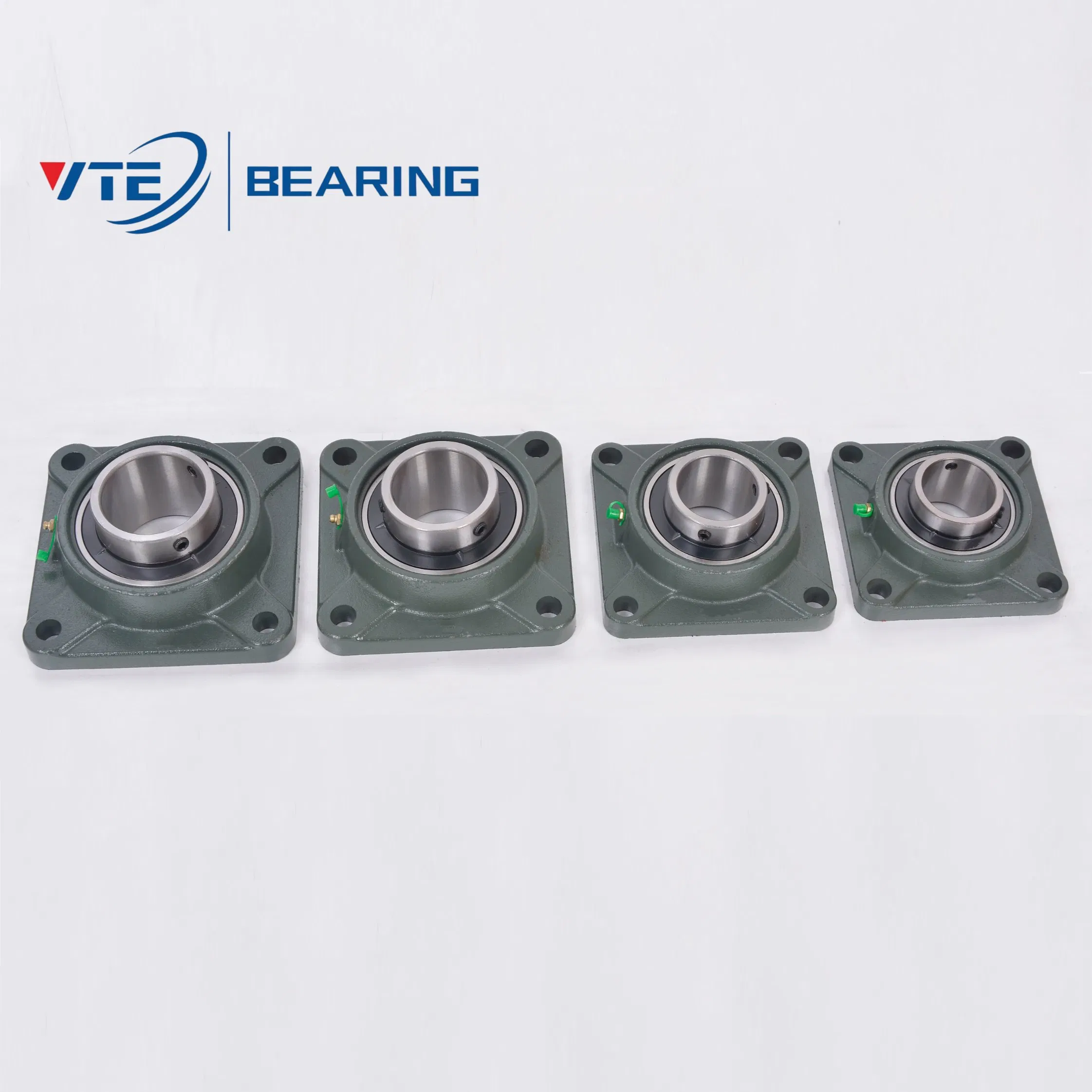

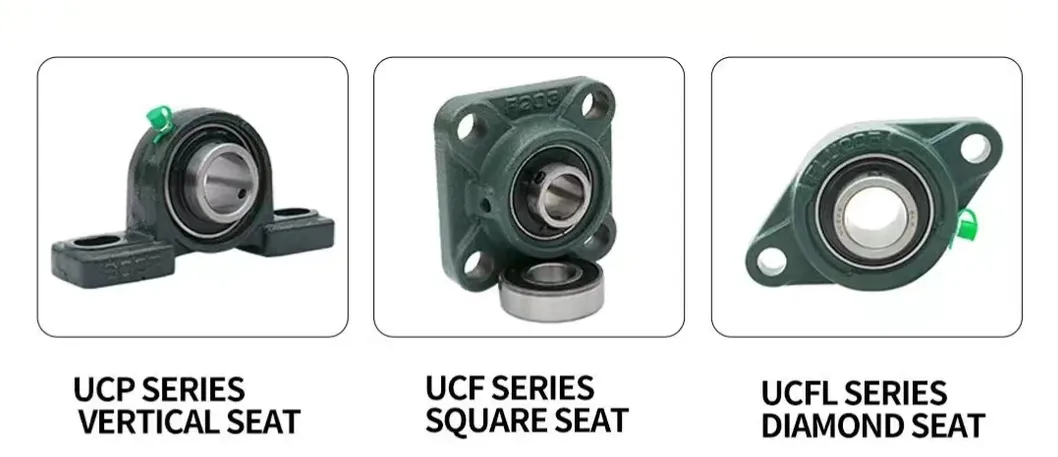

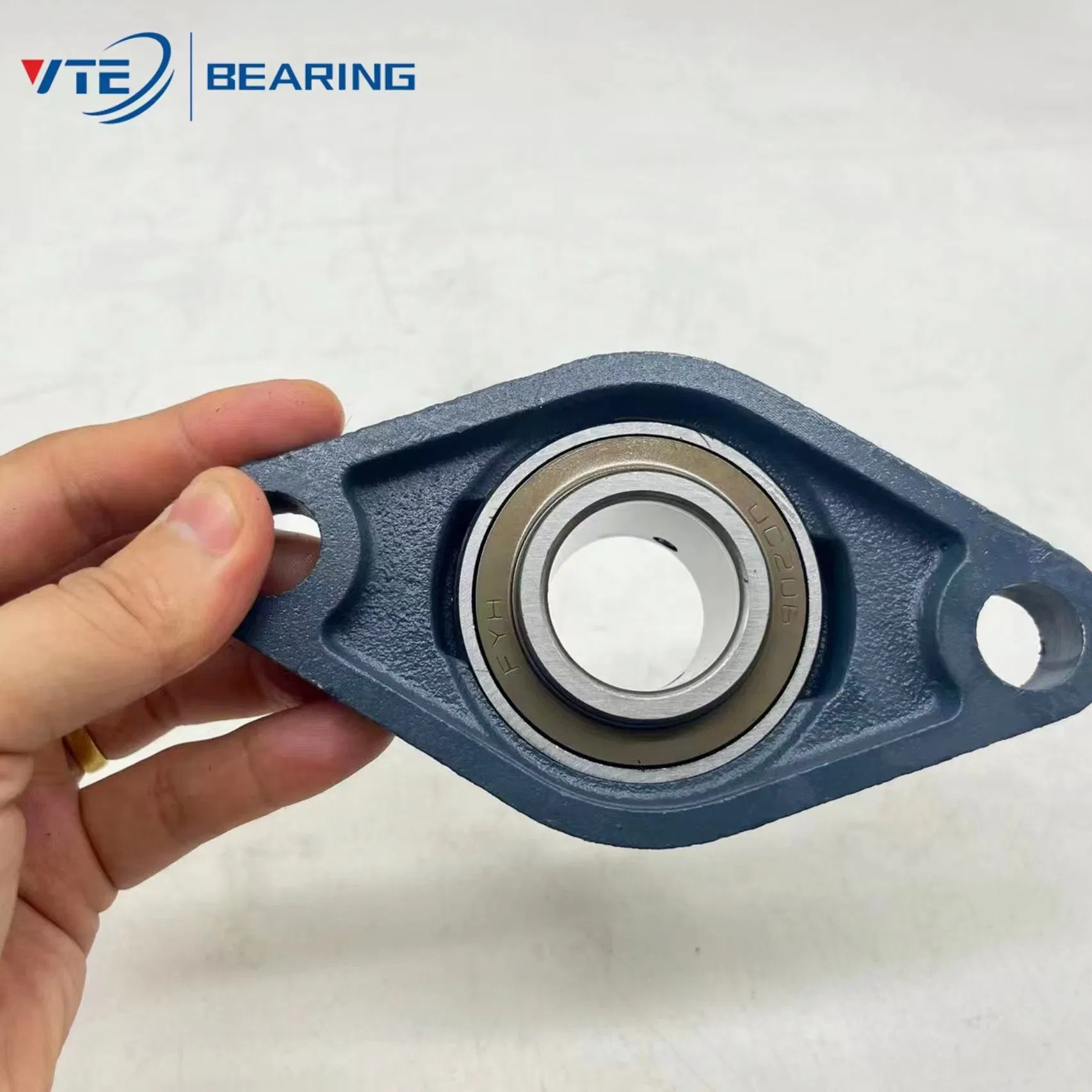

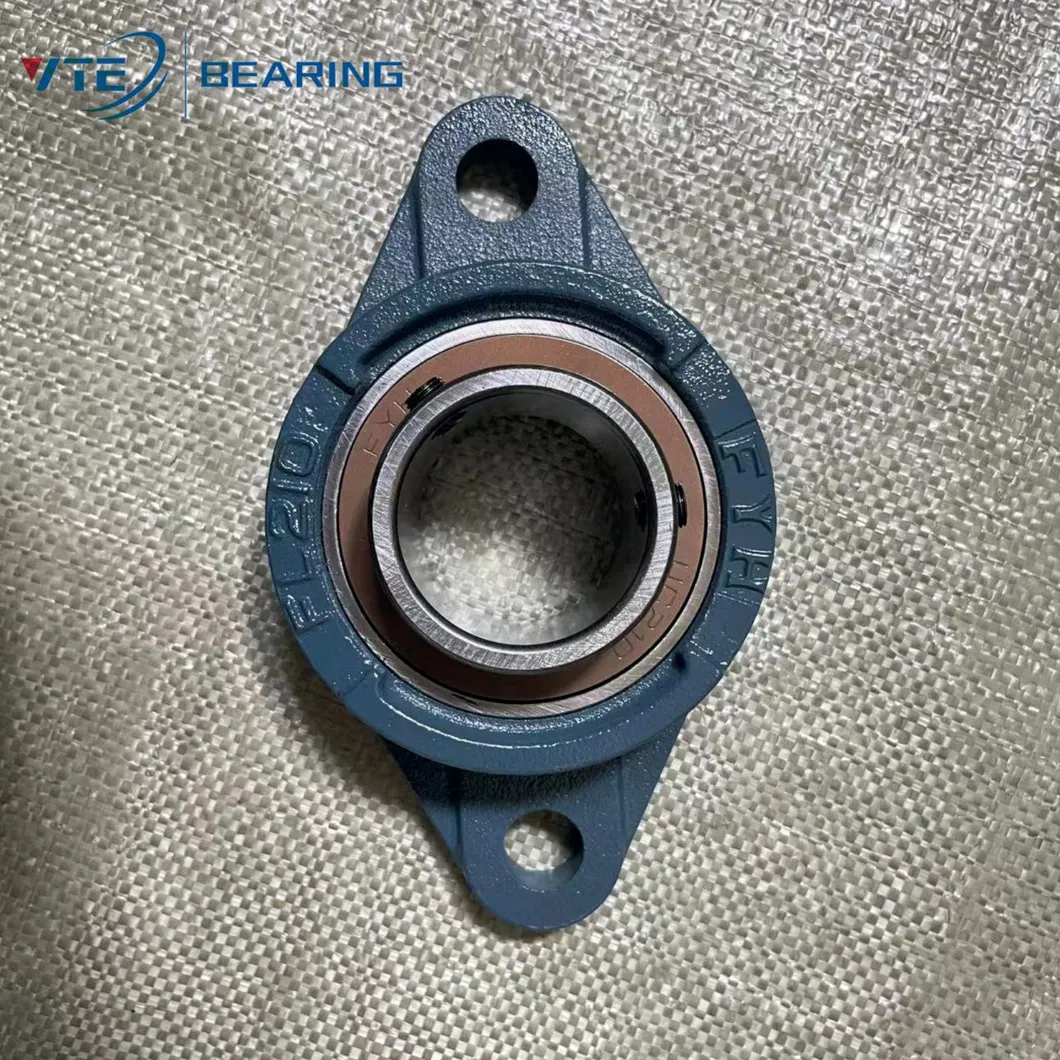

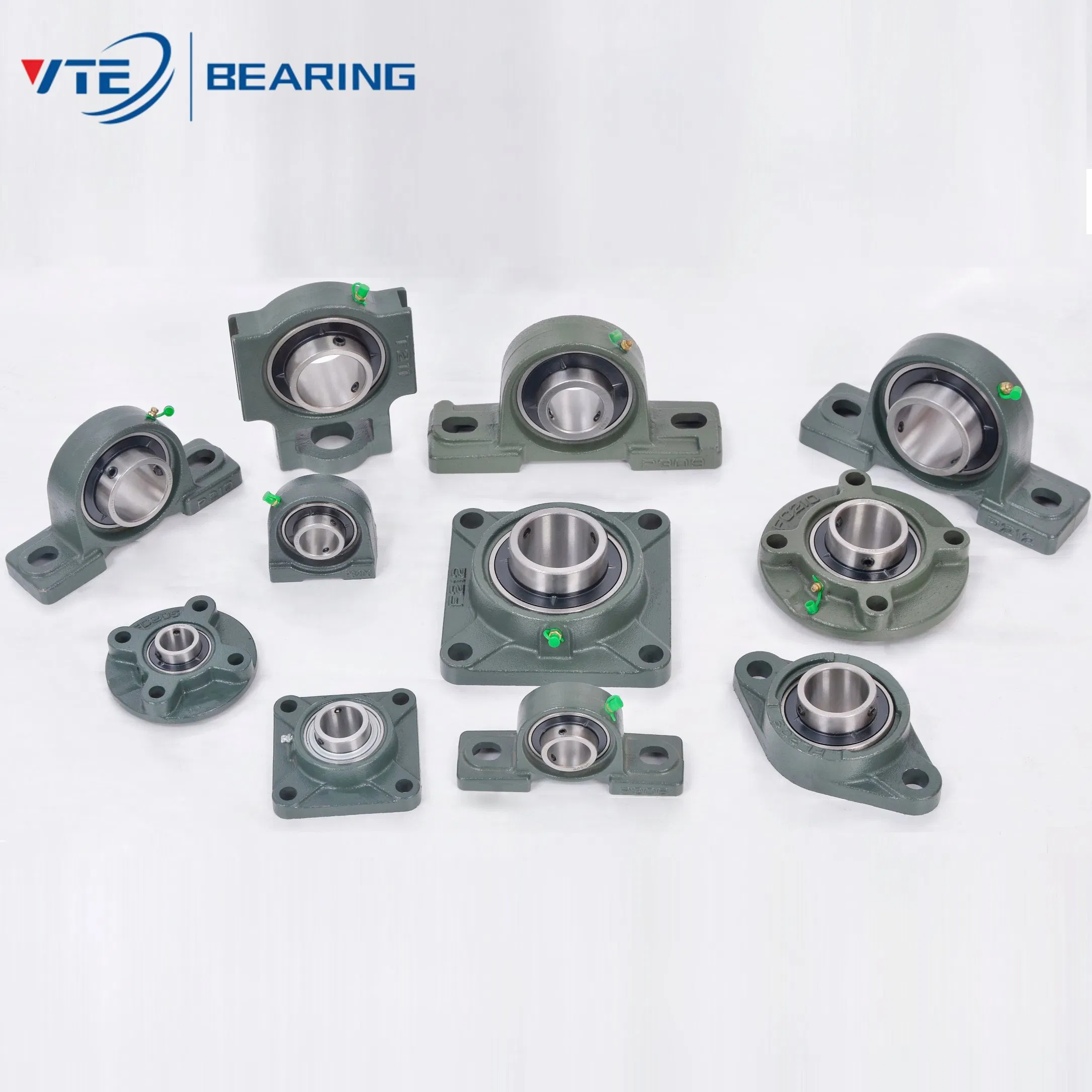

This kind of bearing also has a certain aligning in design, is easy to install, has a dual-structure sealing device, and can work in harsh environments. Common seats are vertical seat (P), square seat (F), convex square seat (FS), convex round seat (FC), diamond seat (FL), ring seat (C), slider seat (T).
| Item | Shaft (mm) | h (mm) | a (mm) | e (mm) | b (mm) | w (mm) | Bolt | Bearing No. | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| UCP 201 | 12 | 30.2 | 127 | 95 | 38 | 62 | M10 | UC201 | 0.65 |
| UCP 202 | 15 | 30.2 | 127 | 95 | 38 | 62 | M10 | UC202 | 0.63 |
| UCP 204 | 20 | 33.3 | 127 | 95 | 38 | 65 | M10 | UC204 | 0.65 |
| UCP 205 | 25 | 36.5 | 140 | 105 | 38 | 70 | M10 | UC205 | 0.79 |
| UCP 208 | 40 | 49.2 | 184 | 137 | 54 | 100 | M14 | UC208 | 2.0 |
| UCP 210 | 50 | 57.2 | 206 | 159 | 60 | 114 | M16 | UC210 | 2.7 |
