Introduction:

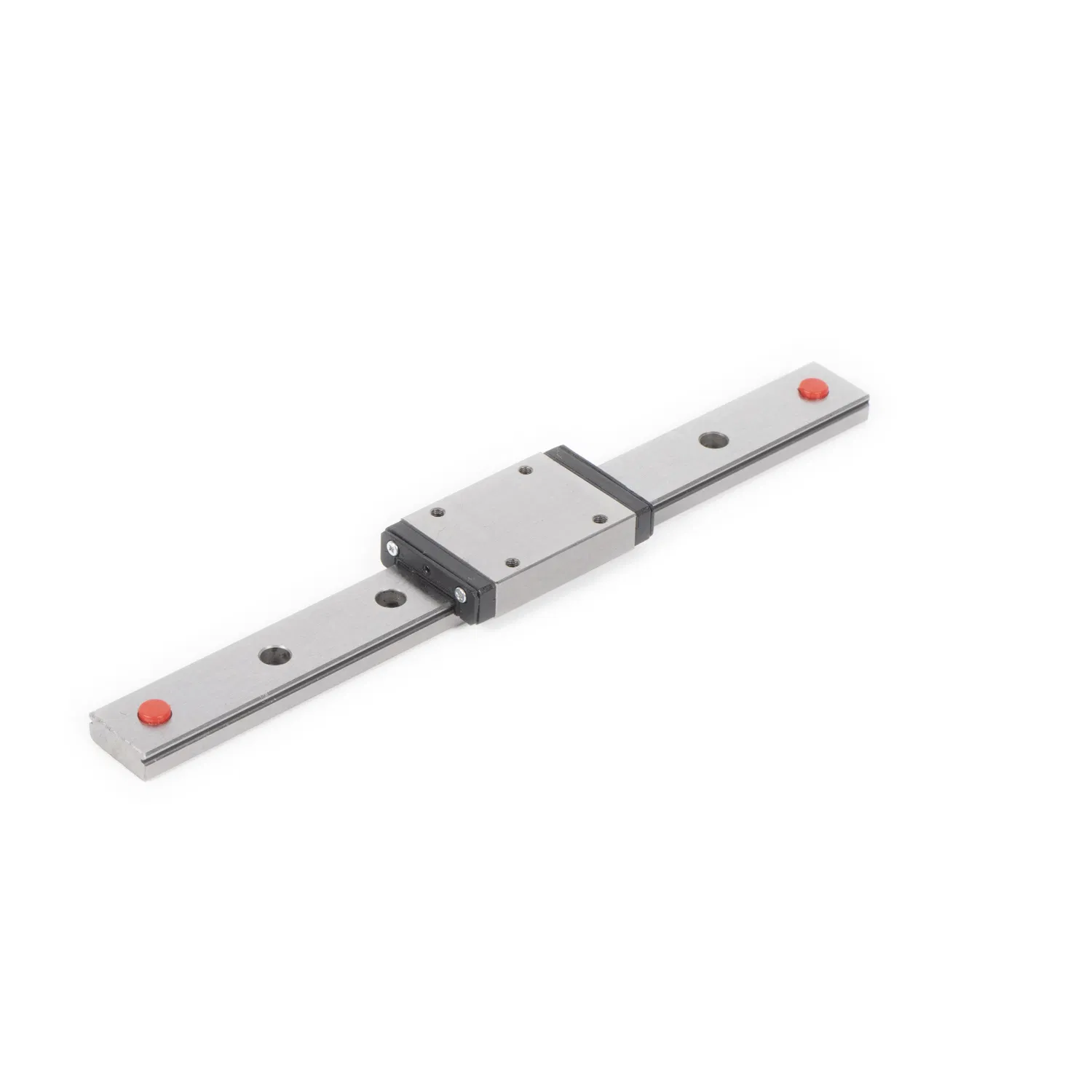

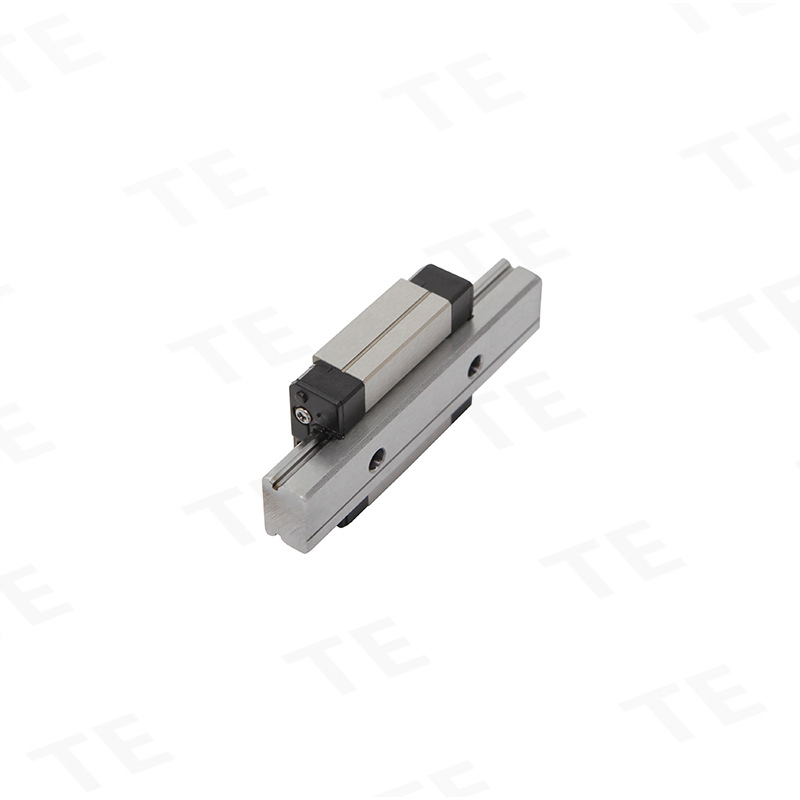

Linear guide is consisted of rail, block, rolling elements, retainer, recirculator, end seal etc. By using the rolling elements, such as balls or rollers between the rail and block, the linear guide can achieve high precision linear motion. Linear guide block is divided to flange type and square type without flange, or Seal type block, Standard type block, Double bearing type block, Short type block.
Catalogue of Linear Guideways:

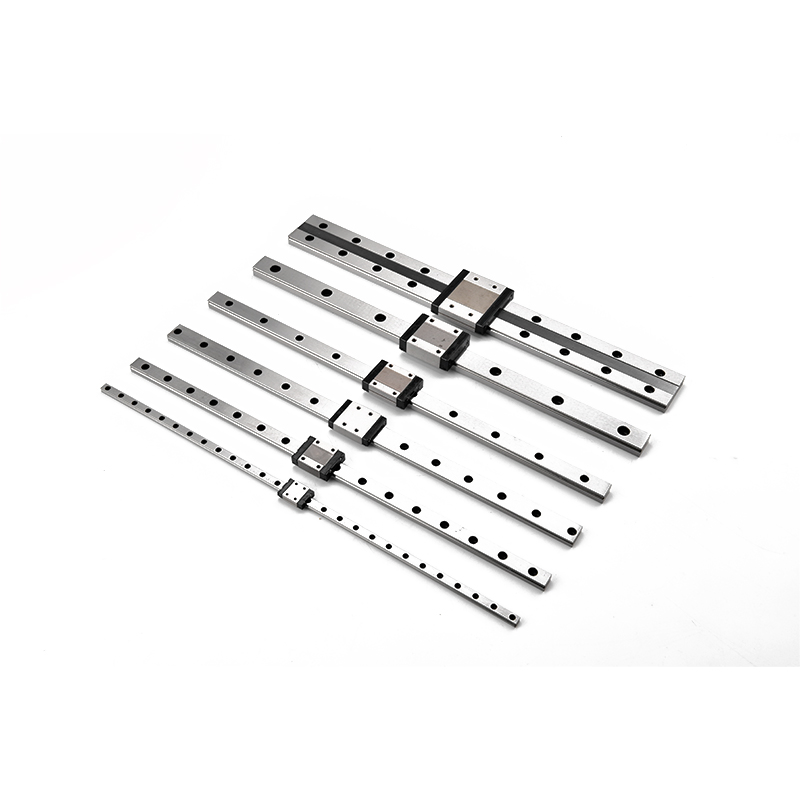

1. HG SERIES IS A HIGH ASSEMBLED BALL LINEAR GUIDE RAIL;
2. EG SERIES IS A LOW ASSEMBLED BALL LINEAR GUIDE RAIL;
3. RG SERIES IS A LINEAR GUIDE WITH ROLLERS ROLLER TPYE BLOCK;

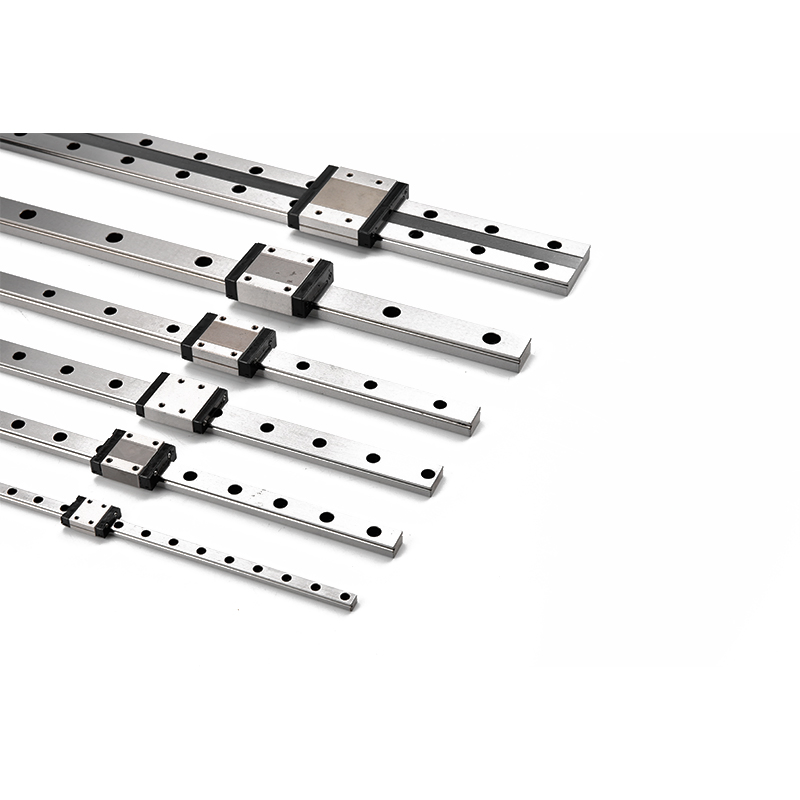

4. MGN/MGW SERIES IS A SMALL/MINIATURE LINEAR GUIDE RAIL.
Structure of Linear Guideways:
1. Rolling cycle system: slider, guide rail, end cover, steel ball, ball holder;
2. Lubrication system: oil nozzle and tubing joint;
3. Dust-proof system: oil scraper, negative dust seal dust-proof sheet, guide rail bolt cover.
Advantages:
1. Easy to install, direct locking with screw and worktable;
2. Design of the ball arrange to upgrade weight bearing capacity;
3. Long life with high speed, high accuracy;
4. High rigidity, multiple precision.
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Advertising Company.
?
Frequently Asked Questions
Q1: What materials are used in the MGN15 linear guide?
The guides are primarily constructed from high-quality Carbon Steel and Bearing Steel (S55C/Gcr15) to ensure durability and precision.
Q2: Can the length of the linear rail be customized?
Yes, we provide custom length options to meet specific machinery and project requirements.
Q3: What are the main advantages of using miniature linear guides?
They offer high precision, low noise operation, high speed capabilities, and are easy to install directly onto worktables.
Q4: Which industries typically use these linear guideways?
They are widely used in 3D printing, manufacturing plants, printing shops, and machinery repair sectors.
Q5: What is the typical lead time for an order?
The standard lead time is approximately 7 days, depending on the order size and customization requirements.
Q6: What certifications do your linear guides hold?
Our products are certified under ISO 9001:2000, CE, and ISO 9001:2008 standards for quality assurance.
