High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
1 / 5
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm
High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm

High Power Automated Turntable Ultrasonic Plastic PP Welding Machine with Robotic Arm

Customization: Available
Application: Household Appliances, Garden Supplies, Decoration, Commodity, Auto Part, Electronic, Stationery, Toy, Packing
Cooling Way: Air Cooling
Send Inquiry

Product Description

Basic Info.
Model NO.
DR-1542A
Control
Semi-Automatic
Frequency Range
20kHz, 15kHz
Electric Current
DC
Style
Vertical
Power
Ultrasonic
Ultrasonic Power
4600W
Ultrasonic Frequency
15kHz
Voltage
AC110/220V(Customization Offered)
Production Speed
Approx 25 PCS Per Min
Language
English
Certificate
CE
Product Description

DANREL ULTRASONIC PLASTIC WELDING MACHINE

The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.

Eliminate use of consumable material
Produce airtight and watertight seams
Increase production time

Main Features

Automatic rotary table with multiple working stations for continuously manufacturing, high efficiency.
Equipped with robot arm to unload welded work piece automatically.
PLC/HMI easy operation touch screen, English Interface.
Self-protection: Over-Current, Frequency Deviation, Over-Temperature.
Optional Automatic Film Feeder to protect the work piece surface.
Model NoDR-1542A
Ultrasonic PowerMax.4600W
Ultrasonic Frequency15KHz
Rotary Table DiameterStandard Diameter 750MM (Customization Offered)
Working Stations6/8/10/12 (Customization Offered)
Gross Weight750KGS
Packing Dimension1650*1200*2200MM
Ultrasonic Welding Machine
Ultrasonic Welding Machine Detail
Machine Overview

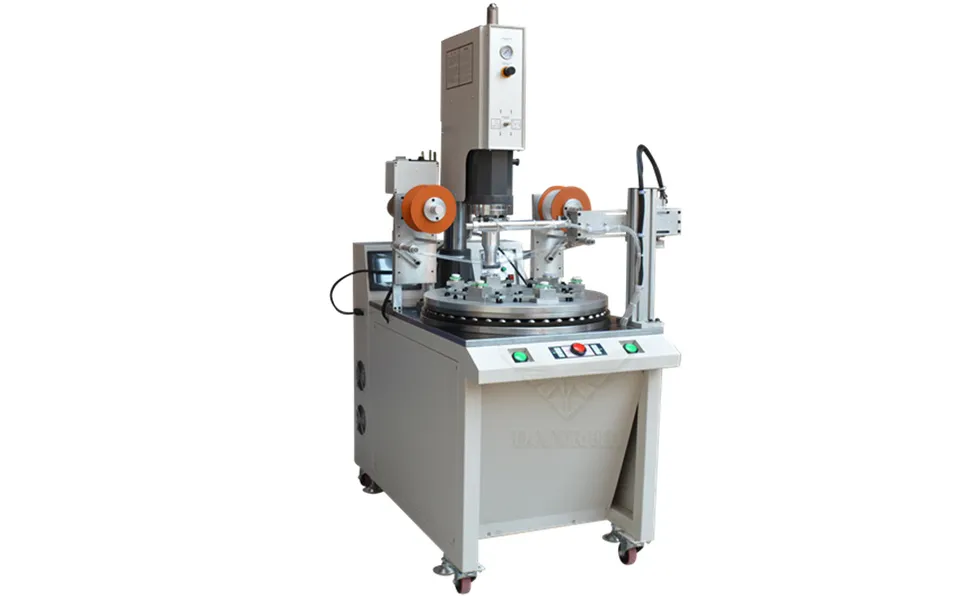

Welding Process

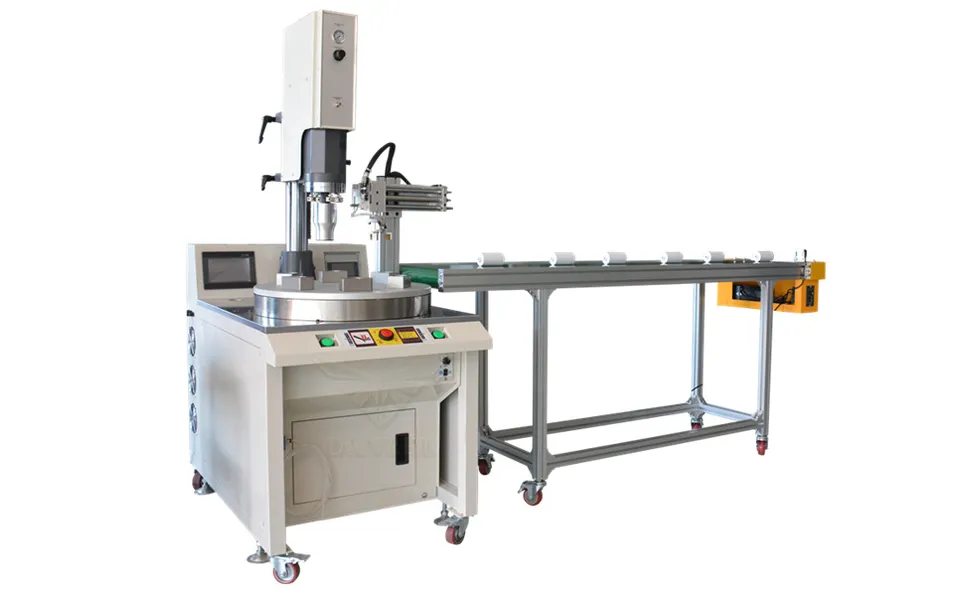

Robotic Arm Detail
Application Industries

Automotive Industry: Plastic body parts, car doors, dashboard, lights, mirrors, sun visor, interior parts, filters, and tanks.

Plastic Electronics: Prepaid water meters, communications equipment, mobile phone accessories, battery cases, and chargers.

Medical & Daily Products: Oral liquid bottle caps, drip caps, cosmetics bottles, electric kettles, and vacuum cleaners.

Machine Details
Ultrasonic Transducer
Brand: FUJI (Japan)
Adopts Japan FUJI Piezoelectric ceramic, stable and durable.
Transducer Detail
Customization Functions
1. Multiple workstations Auto Turn Table.
2. Automatic Robot Arm for unloading.
3. Automatic Film Feeder.
Customization detail
Company Profile Gallery
Factory Overview
Production Line

Frequently Asked Questions

Q1: What materials can be welded with this ultrasonic machine? A: It is designed for thermoplastic parts such as PP, ABS, PC, and various plastic components used in automotive and electronic industries.
Q2: Can the voltage be customized for different countries? A: Yes, we offer customization for AC110V or AC220V depending on your local power supply requirements.
Q3: How many workstations can the rotary table support? A: The standard is 6 fixtures, but we can customize the table to include 8, 10, or 12 stations based on your production needs.
Q4: Is the operation interface available in English? A: Yes, the PLC/HMI touch screen features a user-friendly English interface for easy operation.
Q5: What safety protections does the machine have? A: The machine includes self-protection features for Over-Current, Frequency Deviation, and Over-Temperature to ensure safe and stable operation.
Q6: What is the warranty period for the DR-1542A? A: This model comes with a one-year warranty and uses high-quality components like Japanese FUJI piezoelectric ceramics.
