Basic Information
Frequency Range
20kHz, 15kHz
Production Speed
Approx 25 PCS/Min
Product Description
💎

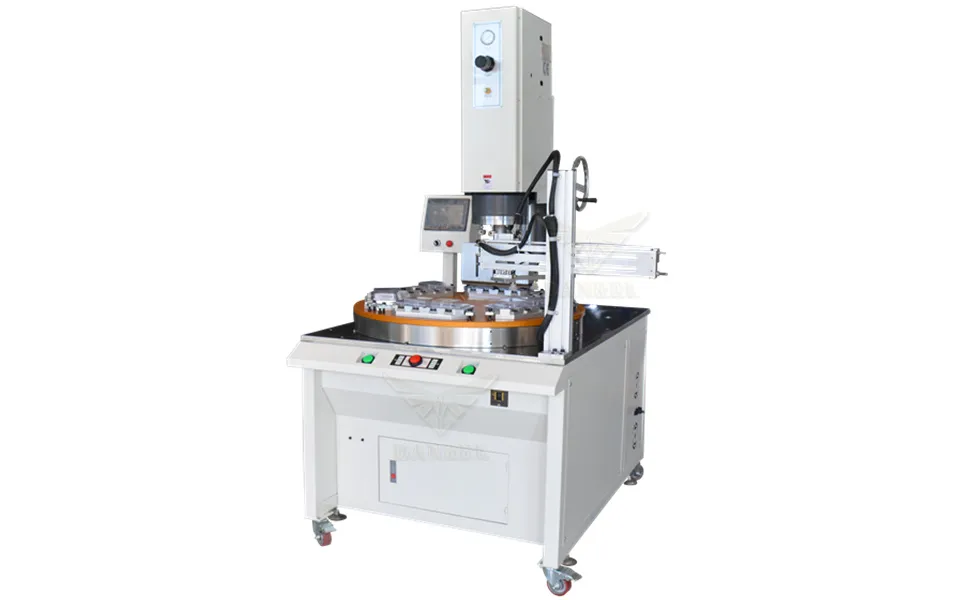

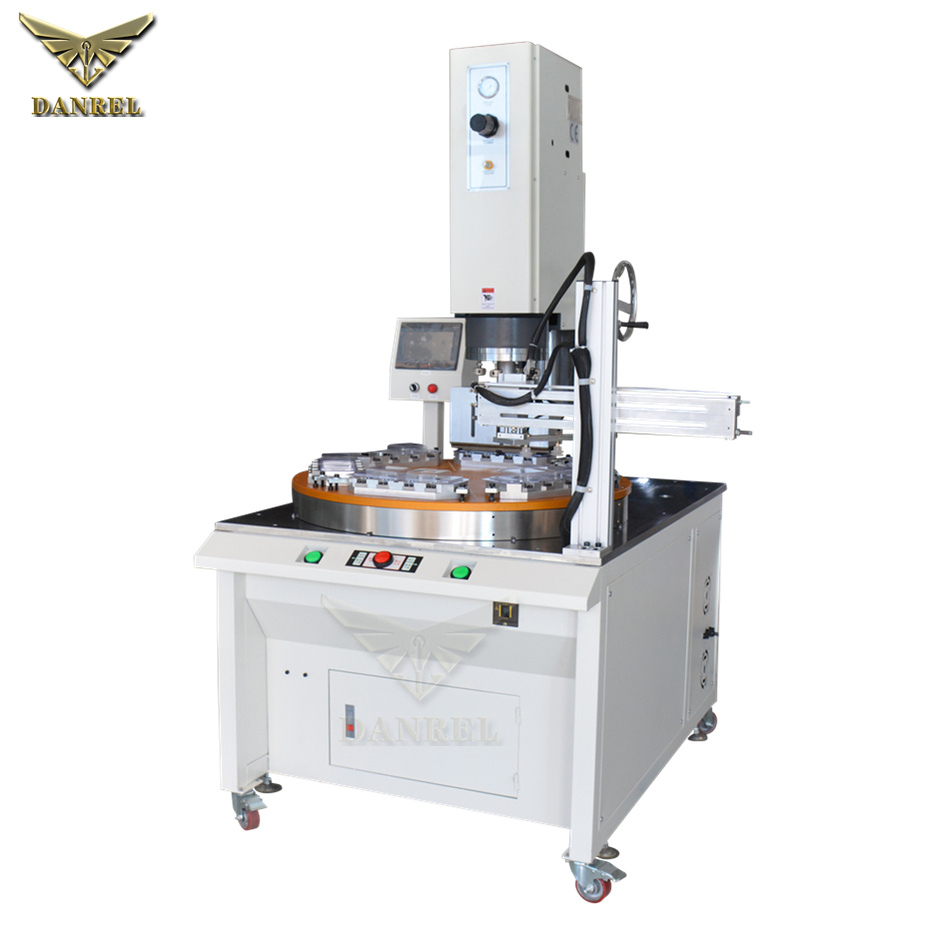

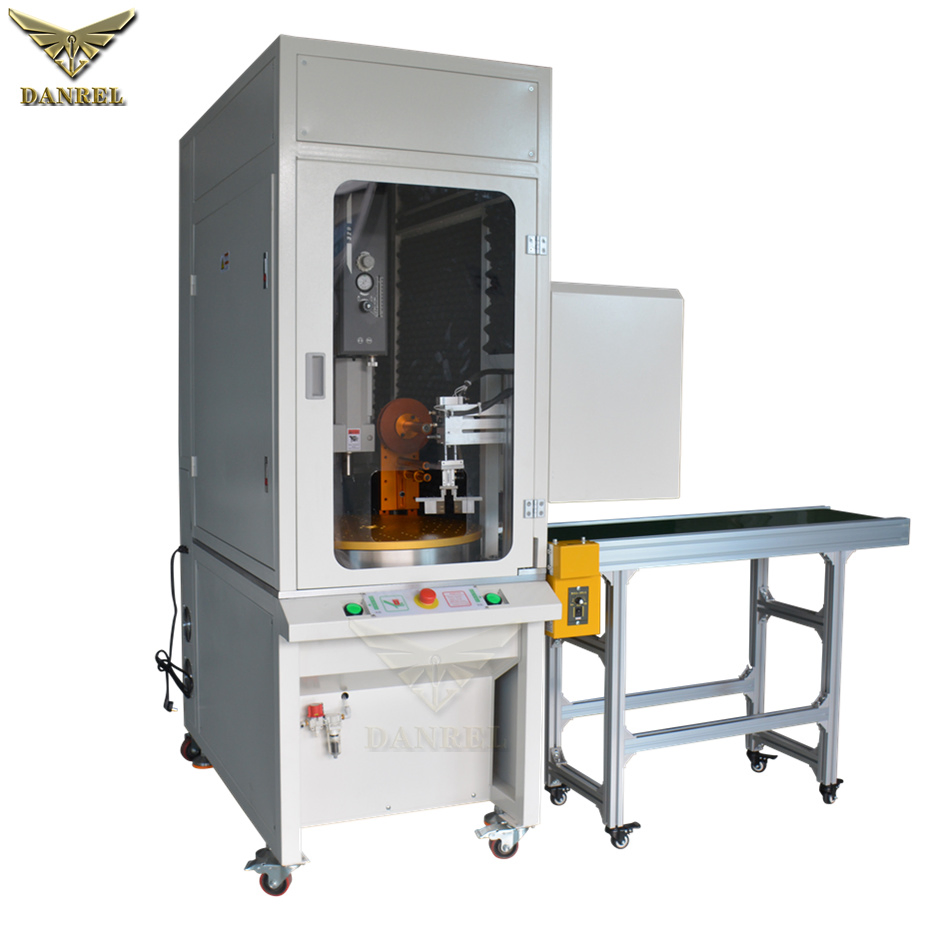

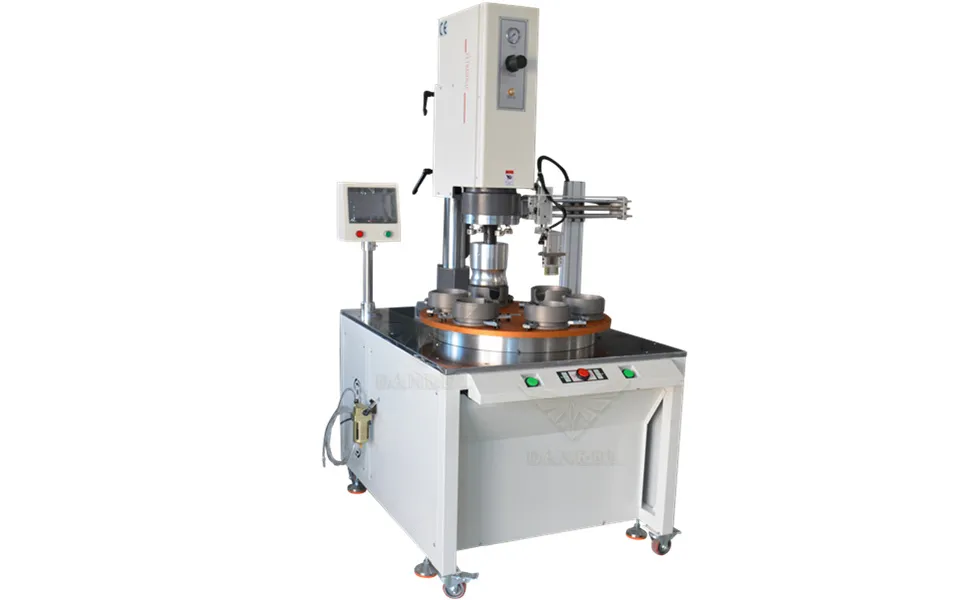

ULTRASONIC PLASTIC WELDING
The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. It is the fastest, most reliable method for thermoplastic parts welding.
✔️
Eliminate use of consumable material; Produce airtight and watertight seams; Increase production time.
Main Features
01

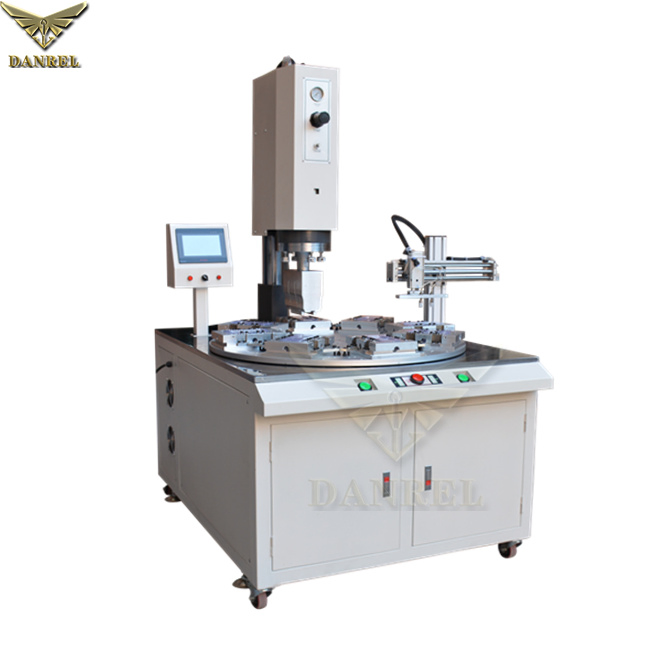

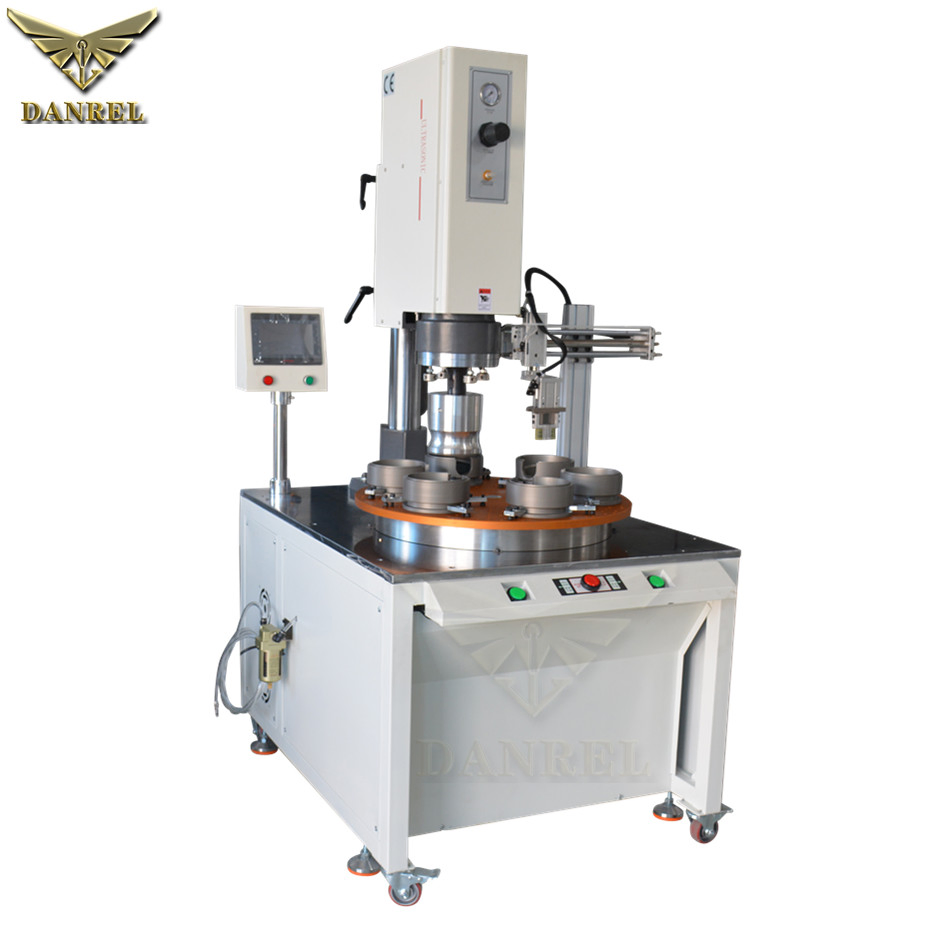

Automatic rotary table with multiple working stations for high efficiency.
02
Equipped with robot arm to unload welded work piece automatically.
03

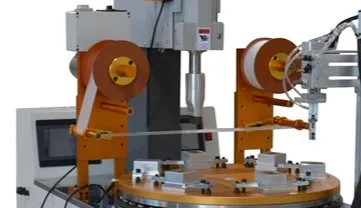

Optional Automatic Film Feeder to protect the work piece surface.
04

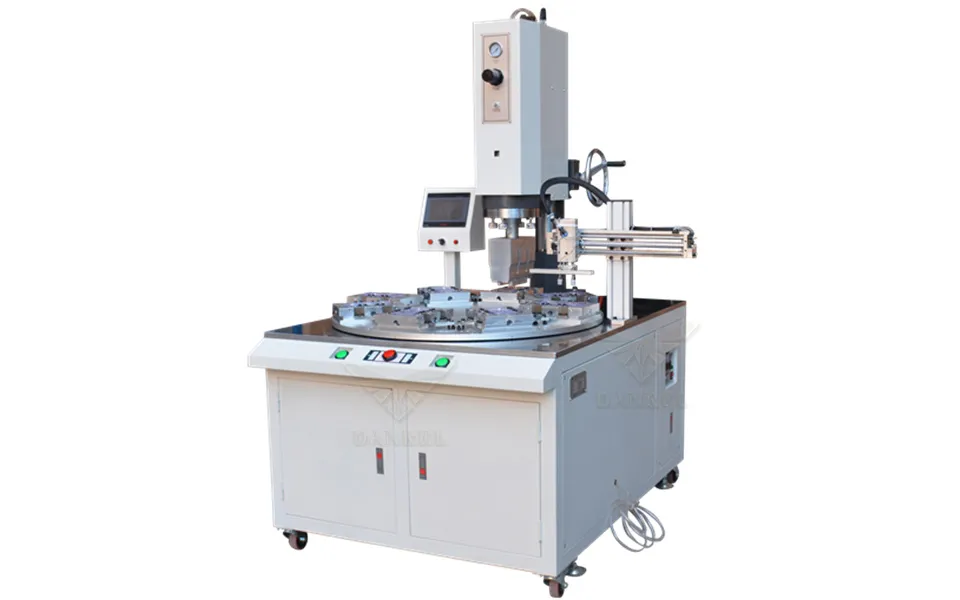

PLC/HMI easy operation touch screen, English Interface.
05
Self-protection: Over-Current, Frequency Deviation, Over-Temperature.
Technical Data
| Technical Specifications | Details |
|---|
| Ultrasonic Power | Max. 4600W |
| Ultrasonic Frequency | 15KHz |
| Driven Mode | Pneumatic |
| Rotary Table Diameter | Standard 750MM (Customizable) |
| Welding Area | Diameter 300MM |
| Gross Weight | 750KGS |
| Packing Dimension | 1650*1200*2200MM |
Applications
This ultrasonic plastic welding machine is widely used in:
- Automotive: Dashboard, lights, mirrors, sun visor, filters, bumpers.
- Electronics: Mobile phone accessories, battery cases, chargers, U disks.
- Medical & Daily: Oral liquid bottle caps, drip caps, cosmetic bottles, electric kettles.
- Stationery: Albums, folding boxes, ink cartridges.
Machine Details

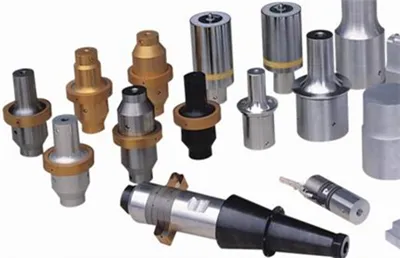

Transducer Brand: FUJI (Japan). Piezoelectric ceramic technology, stable and durable.
Production Environment
Frequently Asked Questions
Q1: What materials can this machine weld?
A: It is primarily designed for thermoplastic materials like PP, ABS, PC, and various automotive or electronic plastic components.
Q2: Does the machine support customized voltage?
A: Yes, we offer customization for AC110V or AC220V depending on your local power supply requirements.
Q3: How many stations can be customized on the rotary table?
A: Standard is 6 stations, but we can customize 8, 10, or 12 stations based on your production needs.
Q4: Is the operation interface in English?
A: Yes, the PLC/HMI touch screen features a full English interface for easy operation.
Q5: What is the warranty period for this machine?
A: The machine comes with a one-year warranty and high-quality Japanese FUJI transducers.
Q6: What are the main benefits of ultrasonic welding?
A: It eliminates the need for glue/consumables, creates airtight/watertight seals, and significantly increases production speed.
